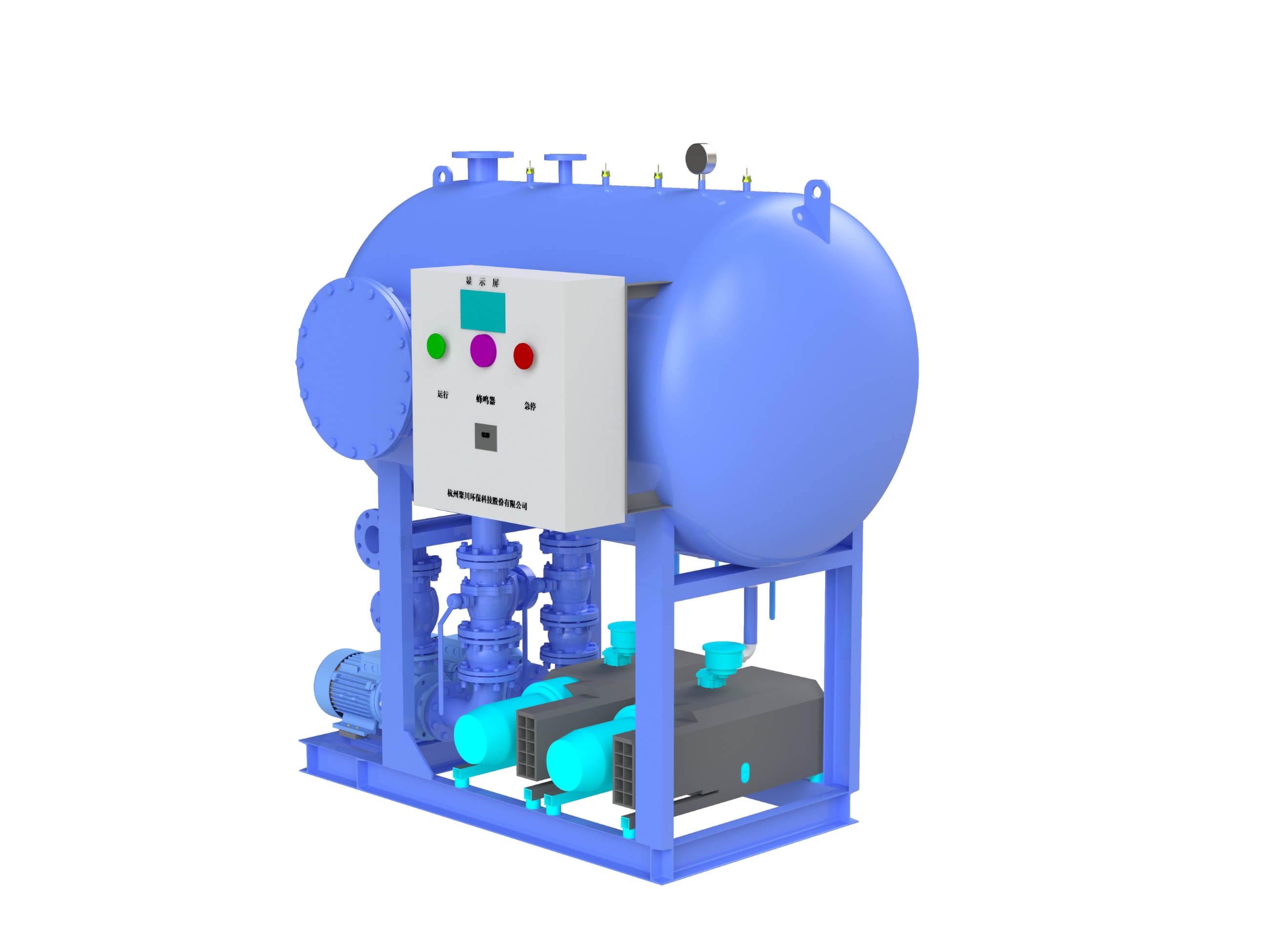

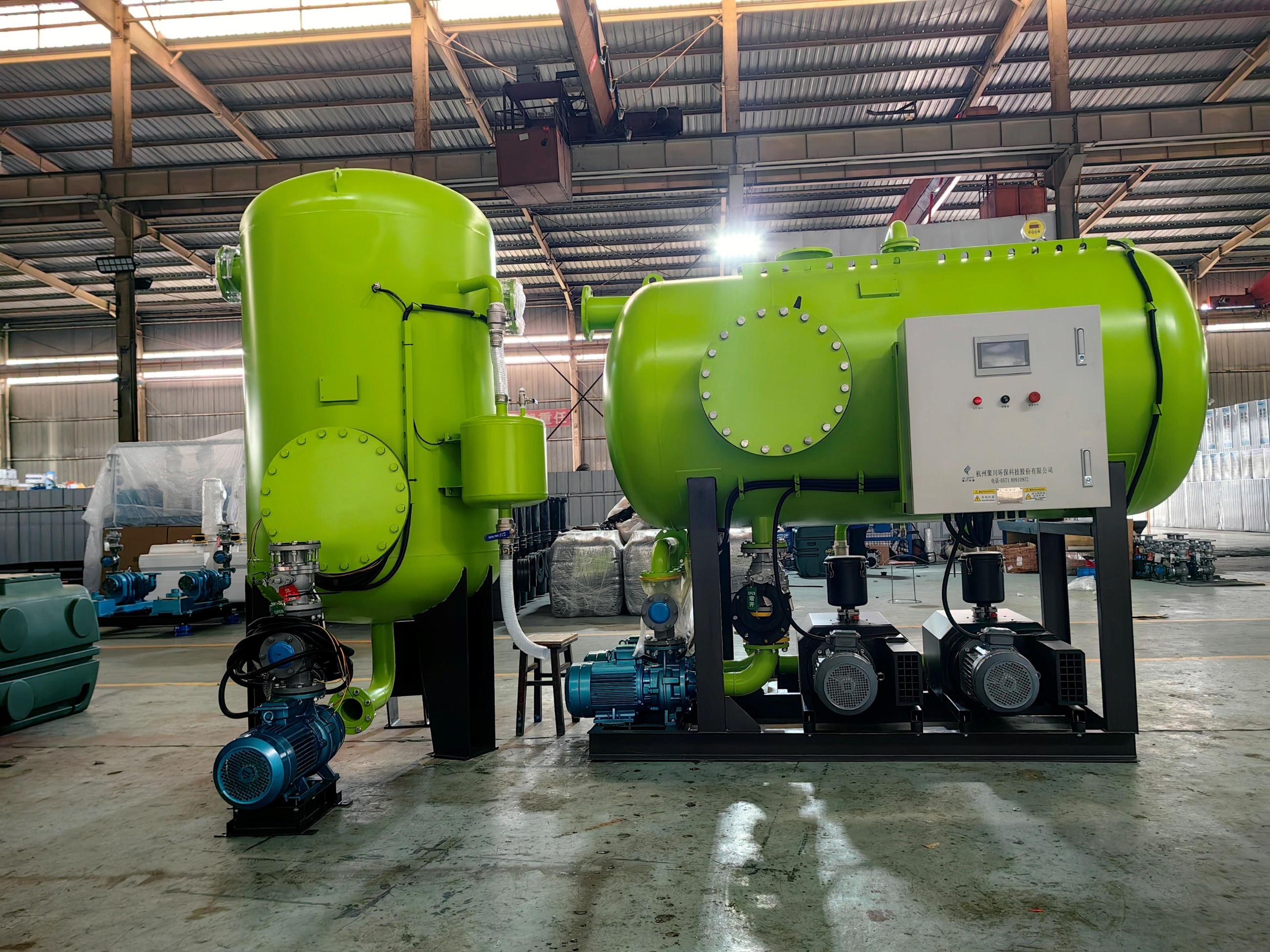

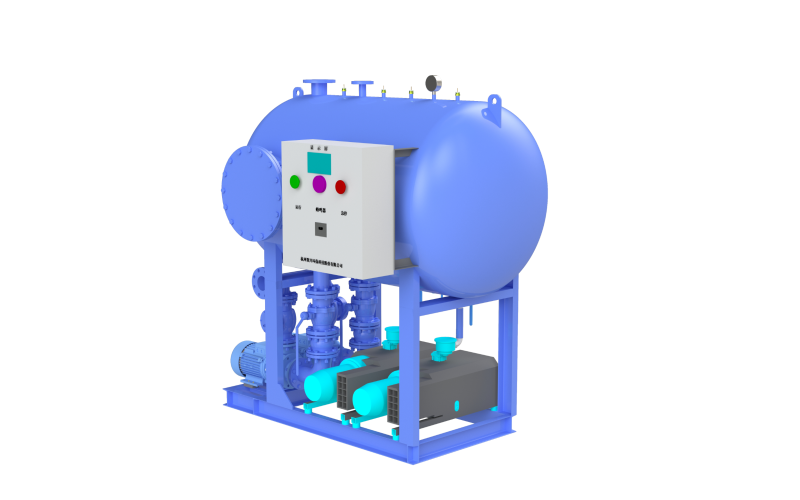

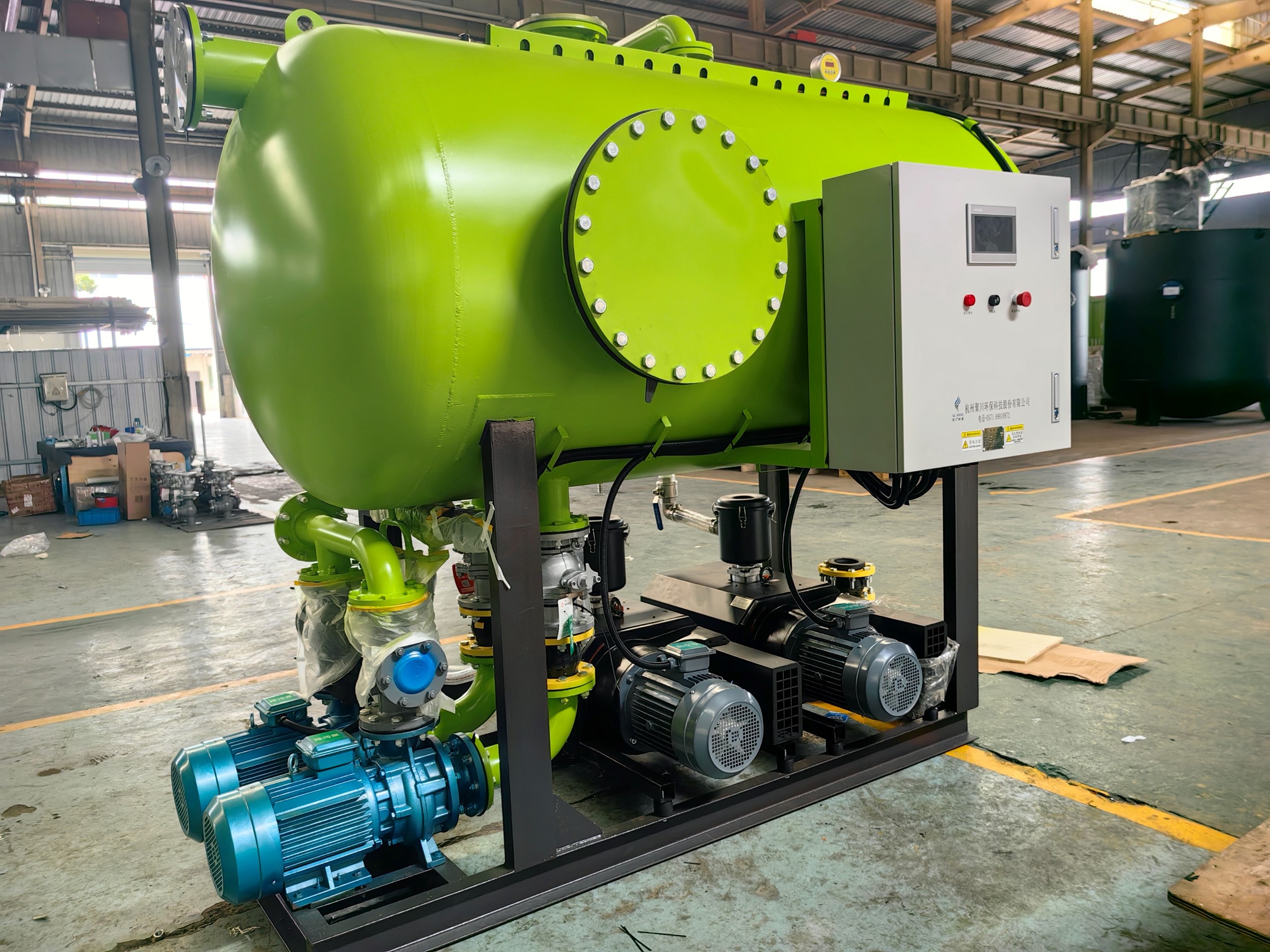

VACS series vacuum unit
Vacuum unit is the core equipment of vacuum drainage system, which is mainly used for generating vacuum and sewage discharge, and completes the management and control of each collection terminal. The equipment adopts the overall design with high integration, easy installation and small footprint, and all the failure-related parts of the vacuum unit adopt the standby mechanism, with the vacuum pumps as standby for each other, the sewage pumps as standby for each other, and two sets of liquid level sensing devices of pneumatic control and electrode, which can make up for each other, and the equipment is stable and reliable, and it can be used in the vacuum system. The equipment is stable and reliable.
Equipment name: VACS series vacuum unit
Equipment Model: VACS series
Control mode: PLC automatic control
Power supply parameters: AC380, 20KW/H or 30KW/H
Equipment material: 304 stainless steel
Equipment volume: 0.6m³, 1m³, 2m³, 3m³, 4m³, 5m³, 10m³.
Vacuum pump group: 2 sets, with a maximum suction capacity of 80㎥/h and a maximum vacuum degree of -0.098MPa
Sewage pump group: 2 sets, single flow rate: 25㎥/h, head 28m
Inlet size: Φ100
Outlet size: Φ100
Equipment weight: 1900KG
Remarks: The above parameters are for reference only and should be determined according to the configuration.
