Project background:
Application background of indoor vacuum blowdown Technology
There are many problems if apply the traditional gravity drainage method in the new large space, long-apan and large-scale underground buildings:
The slope of the pipeline affects the indoor floor height, thus hinders the space utilization and decoration effect
Increase of civil structure cost caused by sewage lifting
The pipe diameter is enlarged step by step to reduce the flow rate and cause impurities to accumulate and block
Structural beams and columns, professional pipelines and other restrictions on the direction of drainage pipes
Health and safety problems caused by leakage caused by defects of pipe and construction quality
Underground civil air defense space is used, no holes are allowed, and gravity flow pipelines cannot be arranged
The gravity flow in the underground space is easy to cause the problems of poor drainage, full of odor, and the breeding of flies and mosquitoes
For the reconstruction of existing buildings, gravity flow is difficult to expand, construction is difficult, investment is high, and the period is long

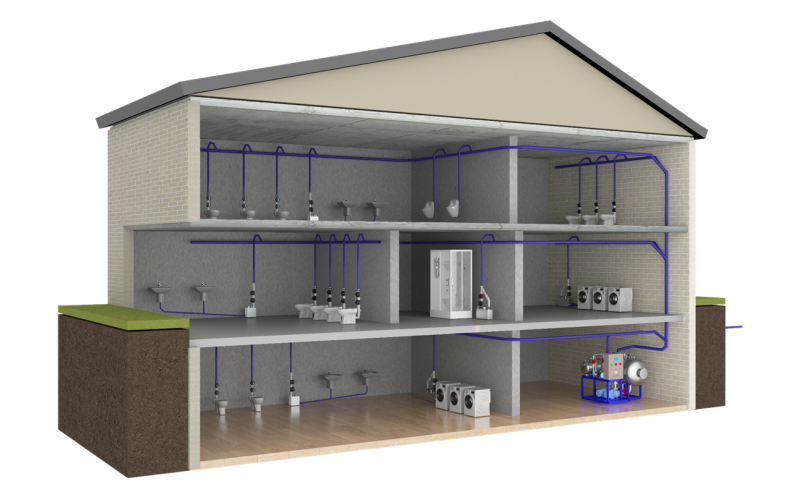

What is a vacuum drainage system?
Juchuan vacuum drainage system provides unlimited freedom and flexibility in building layout, design and construction, pumping sewage through vacuum negative pressure pipes to vacuum units and then discharging to sewage treatment facilities. Juchuan vacuum vacuum drainage system provides architects and designers with the freedom to locate the pipeline "at will", allowing an open building environment, flexible spatial planning, can realize the rapid design of drainage system, rapid transformation, construction, solve the problem of sewage, and maximize the use of building space.
Juchuan vacuum drainage system, through its system of negative pressure suction, closed pipe characteristics, to prevent indoor air pollution and virus transmission, simply put, for the people in the building to provide a better level of health conditions, improve the quality of life. The vacuum toilet of Juchuan vacuum drainage system can save water significantly, save 90% of water, save water charges, save the construction of sewage treatment facilities and sewage treatment costs, can realize the same layer drainage without a large number of lifting devices, the system has online monitoring device, when the sewage leakage can be found to locate the fault point in time and eliminate the fault. Can greatly reduce the difficulty of maintenance and maintenance costs.

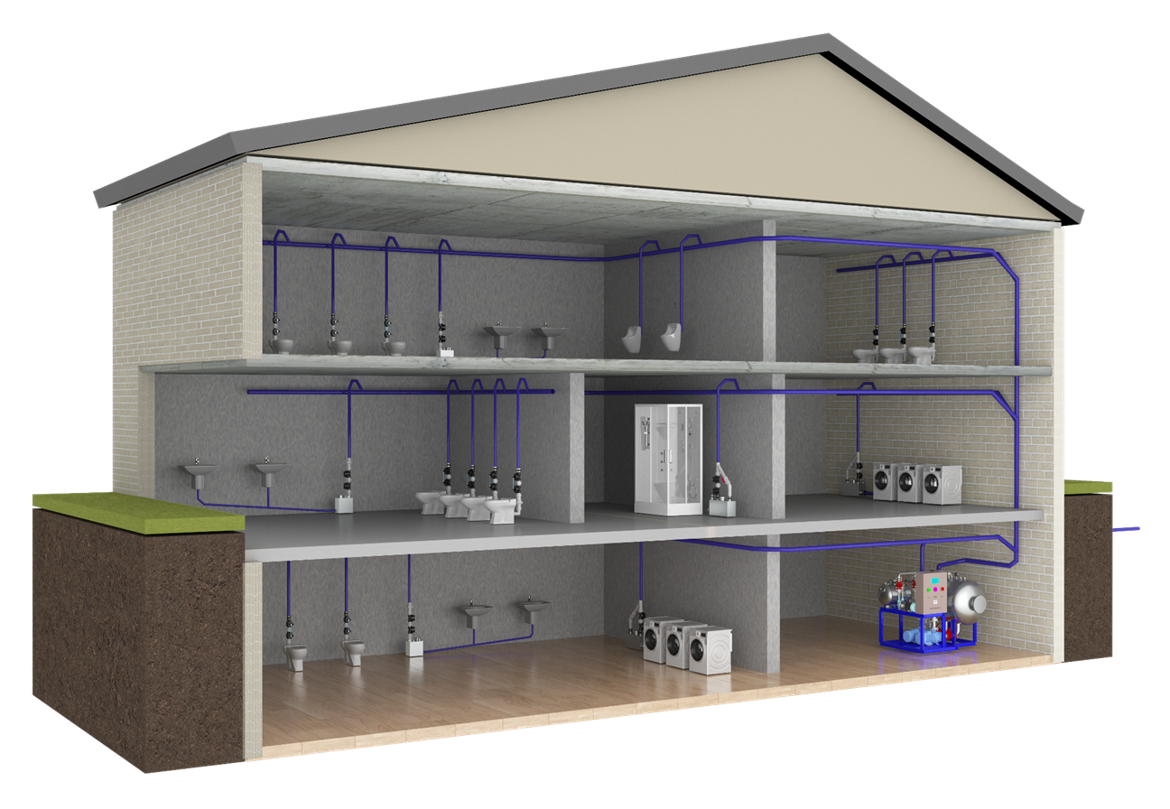

Flexible collection of all kinds of sewage
When it comes to our vacuum drainage technology, the first thing we always mention is the extraordinary ability to meet all requirements.
Through two key features, we can adapt to every design task:
We can lift sewage up to 4-7 meters
he transfer sewage has the climbing ability to transport sewage over long distances within the horizontal range without the need to increase the lifting pump.
This flexibility is ideal for every designer: bathrooms can be placed where they need them, floors can be designed for completely different uses, and reconfiguration doesn't affect the rest of the building.
Simply put: Vacuum drainage systems provide the best sewage collection solution for your building!
Effectively improve indoor sanitation
Although the design and construction of vacuum drainage system is very flexible, whether it can improve the sanitary environment in the building is also an important factor to be considered in the drainage system. All traditional gravity water flusher will produce virus-containing aerosols in the air when flushing the toilet, bringing odor, environmental pollution, and the risk of virus transmission.
It is well known that the recoil of conventional toilets can cause the spread of bacteria and viruses in indoor air. But in fact, this also happens in washbasins and showers, when a large amount of sewage enters the drainage pipe, it will cause pollution in the sewer air to break through the trap, back into the room, and spread all kinds of bacteria and viruses.
This is not the case with our vacuum toilets, which rely on the mechanical closure of the diaphragm valve.
The vacuum pipe is a closed negative pressure pipe. When the vacuum toilet flushes, it only sucks out the sewage and carries away 60 liters of contaminated air. No splashing, no aerosol transmission -- a common way for viruses to spread. Washbasins and showers are separated by mechanical diaphragm valves and drains without recoil, effectively reducing the spread of bacteria.
In short, vacuum drainage systems can provide a better sanitary condition for buildings and improve the business environment!
Lower construction and operation costs
Vacuum drainage system can be long-distance transmission, no need to slope and increase the lifting device, the number of equipment is small, while maximizing the use of space, can effectively save the cost of civil construction, ceiling decoration and equipment. Cost saving at the same time, improve the efficiency of construction projects.
Vacuum drainage pipe laying flexible, can shorten the design, construction cycle, save manpower and management costs.
Vacuum urinals can effectively save water by 90%. For commercial centers, high-speed railway stations and airports with frequent use of toilets, they can greatly save water charges and the construction and treatment costs of sewage treatment facilities at the back end, saving and environmental protection.
The whole drainage system, only the vacuum unit part has a vent pipe, a sewage pipe, reduce the municipal connection cost, the system also adds an online monitoring system, can detect equipment failure in time, effectively reduce the difficulty and cost of operation and maintenance.
Simply put: vacuum drainage system for your project effectively save construction and operation costs!
Application field of vacuum collection and discharge system
Compared with the traditional gravity drainage system, the vacuum drainage system not only can effectively save water and protect the water environment, but also has the advantages of the pipe network not limited by the terrain, convenient installation, not easy to block, relatively small pipe diameter, good economic performance and so on.
Application of indoor vacuum drainage
Fixed space: underground commercial space, subway, environmental toilet, shopping mall / office building, commercial reconstruction, old urban reconstruction.
Mobile space: train, high-speed rail, ship, offshore oil drilling platform, container barracks, etc.
Outdoor vacuum drainage application
Water source protection area, rural sewage collection, villa sewage collection, industrial zone sewage collection, river sewage treatment, etc.
Application of vacuum drainage:
At present, the mainstream application is mainly divided into indoor vacuum drainage and outdoor vacuum drainage, which make use of the different characteristics of vacuum drainage in different application scenarios.
Indoor vacuum drainage is mainly used in building drainage, from the current situation, the main application of underground space development drainage, underground toilet, underground commercial catering drainage, building on the same floor drainage, hospital drainage on some special occasions (for example, infection department, radiology department, negative pressure ward, etc.).
Underground space, underground toilet, underground commercial catering vacuum drainage application
The situation of underground space is more complicated, many drainage points have drainage difficulties, if the traditional gravity flow is used, the cost of civil construction may be relatively high, and the vacuum drainage pipeline is flexible, which can save a lot of civil construction costs. In addition, the underground space is also a closed space, the underground dining and toilet sewage is easy to produce odor, causing air pollution in the indoor space, affecting the indoor environment, and causing serious impact on the underground business environment, which is also an important factor for the underground space to use vacuum drainage. Finally, the underground commercial catering drainage is easy to block the problem, because the catering wastewater contains heavy grease, in the case of cooling and slow flow rate will solidified on the drainage pipe wall, with the increase, will cause the drainage pipe network blockage, maintenance trouble. And the grease in the pipe is easy to breed bacteria, resulting in odor overflow, breeding mosquitoes and flies, the vacuum drainage situation is much better, because the vacuum drainage uses the gas-liquid two-phase drainage method, the sewage flow rate is high (4-7 meters/second), the flushing power is strong, it is not easy to block. Therefore, in addition to the underground toilet with vacuum drainage, in fact, more and more underground commercial catering oily wastewater, but also gradually began to use vacuum drainage system to collect.

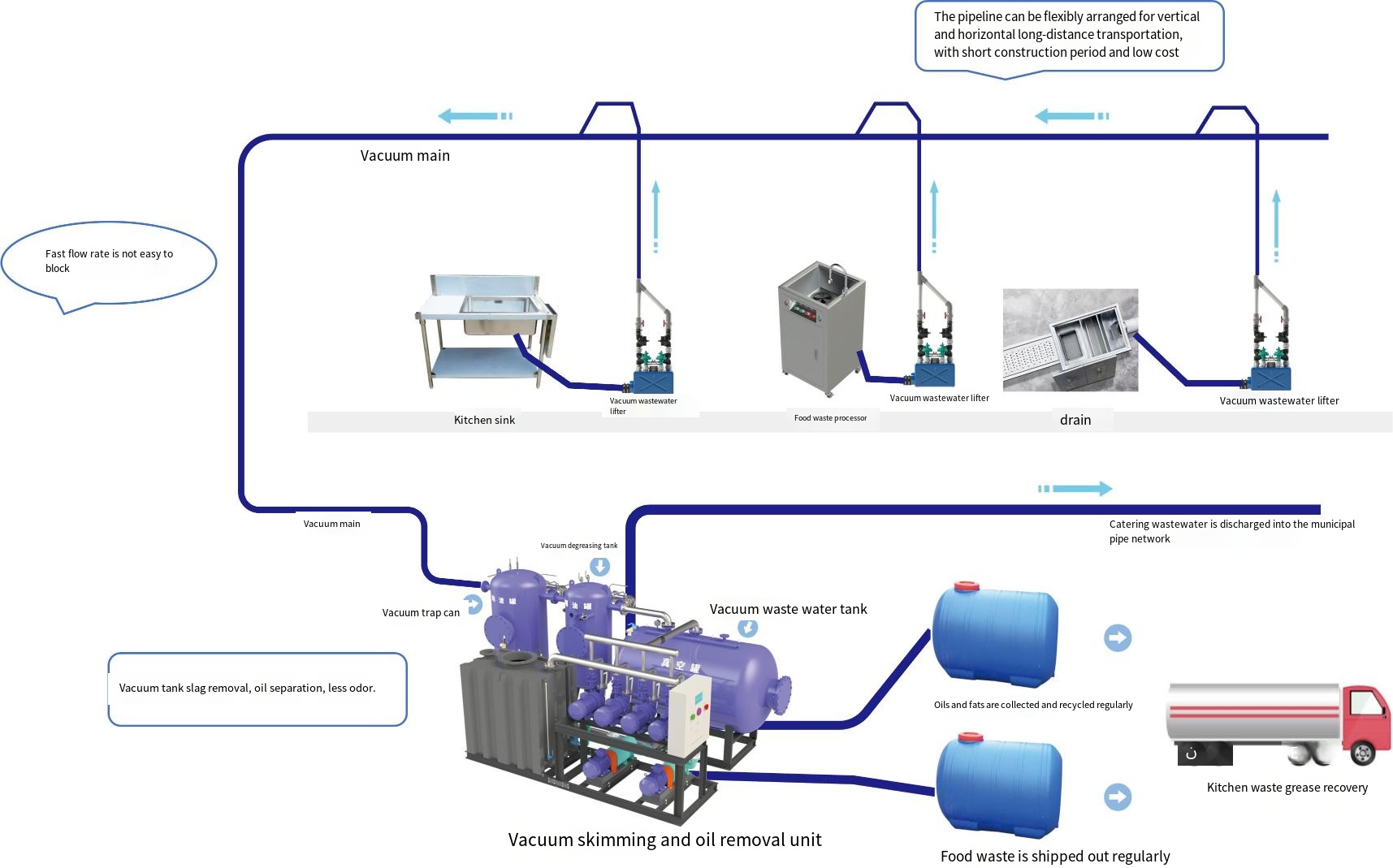

Commercial Restaurant Vacuum Drainage System Diagram
Hospital vacuum drainage application
The hospital has always been a particularly complex building in civil buildings, and the drainage pipe must have many equipment rooms, clean areas, wards must be bypassed, can not take the drainage network, so the traditional gravity flow whether it is designed, construction will be more difficult, and the cost is high.
In addition, the sewage composition of the hospital is very complex, and there are often toxic, harmful, radioactive, heavy metals and other sewage, which needs to be collected and discharged separately, and can not be leaked, otherwise it will cause serious pollution risk. Therefore, the vacuum drainage pipeline is flexible, the pipeline is closed, clean and sanitary characteristics, for the hospital this special complex drainage situation, is a more ideal drainage method.
Building transformation of the same floor drainage
For buildings that are needed, there is a need for a change of use, such as from non-catering to catering and from offices to hotels. In this special case, there is no reserved drainage conditions, so it must be a large area of the same layer drainage, in this case, the vacuum drainage system transformation is more convenient, the vacuum drainage pipe can be as flexible as the water pipe layout, so it is very convenient to complete the drainage transformation.
Other indoor vacuum drainage system applications
Indoor vacuum drainage application scenarios are very many, can not enumerate one by one, this only roughly enumerate its application scenarios.
Supermarkets, fresh stores, the store inside the condensate, cooked food area, seafood area will have a lot of wastewater, and the layout of the supermarket is often adjusted, so now there are some fresh stores, the supermarket uses vacuum drainage system.
Underground civil air defense space, this main civil air defense space can not be worn down, must be drained on the same layer.
In buildings in arid and water-scarce areas, vacuum toilets can save water significantly. Some areas will carry out water-saving transformation, and some vacuum drainage systems are also adopted.
Vacuum drainage and gravity flow sewage comparison
Comparison Items | Conventional gravity sewerage systems | Vacuum sewer system |
Design | • Difficulty with sewage lifting due to hydraulic slope, or the need to lift pumps and structures • Inconvenient design when performing the same level drainage design | • By vacuum suction, not affected by gravity, can be arbitrarily lifted sewage • The drainage pipeline can be arranged according to the need, flexible and changeable |
Pipe diameter | • Large pipe diameter, costly and requiring large-scale excavation • Slow flow rate and easy scaling • Pipeline laying occupies a large space and can not bypass obstacles at will • Deep pipe trench excavation, long construction period, difficulty and high cost | • Vacuum pipe diameter is small, usually 50-200mm, can be PVC or PE material, low cost • Fast flow rate, self-washing ability, not easy to scale • Pipeline laying flexible, the direction is not limited by terrain, can easily bypass obstacles • Shallow burial depth, small construction earthwork, simple construction and economy |
Installation Repairs | • Complex installation, large amount of engineering, leakage is not easy to detect | • The installation is relatively small, the maintenance is simpler, the pipeline is in a vacuum state, there is no leakage of the transmission medium |
Odor problem | • Pipe network system is semi-open, poor sealing, odor escape, breeding flies | • The pipe network is under negative pressure and completely closed, so the odor will not escape |
Under construction Building Renovation | • Difficult construction, high investment and long construction period | • Easy to expand, easy to construct, short construction period |
Introduction to Vacuum Drainage Equipment
Residuum oil and water separation vacuum unit

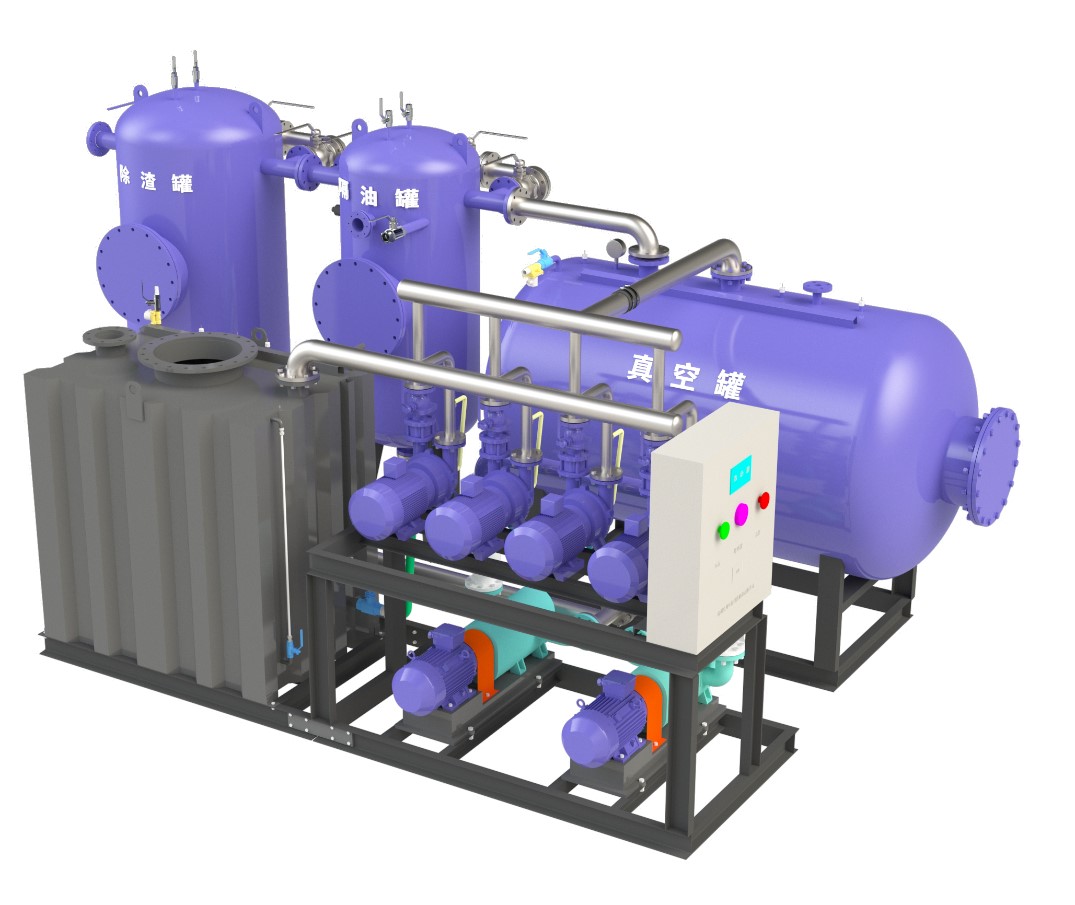

Juchuan R & D automatic oil-water separation vacuum unit, on the basis of the company's original vacuum unit to increase the oil-water separation function, is the function of the original vacuum unit enhanced version, is a vacuum sewage collection, slag separation oil, electric heating constant temperature, sewage automatic strong discharge and other functions in one new oil-separation vacuum drainage equipment, Completely solve the problem of oil separation has no effect, oil collection is difficult to smell, high cost, can not meet the standard, etc., suitable for supermarkets, hotels, restaurants, cantons, snacks and other catering areas, is the best choice for the catering industry.
Mechanical vacuum sewage lifter
Mainly used for indoor vacuum drainage system, using pure mechanical structure design, no need for power supply, adapt to humid and harsh environment, stable and reliable equipment. At the same time, the sewage box adopts a molding and strengthen the design, good tightness, effectively prevent sewage leakage, the use of double diaphragm valve standby design, high reliability of equipment, less failure.

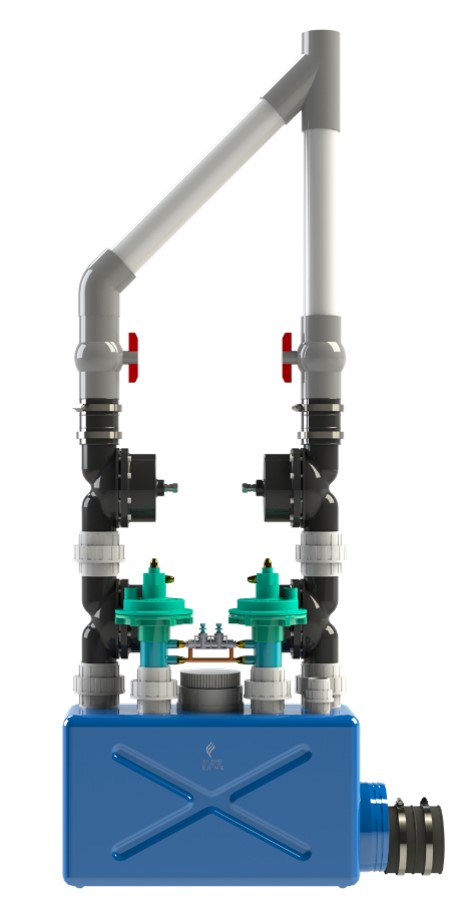

Equipment name: mechanical vacuum sewage elevator
Equipment model: VACLift-JX-WS
Control mode: pure mechanical control
Equipment material: ABS or UPVC molding
Equipment volume: 30L
Equipment size: 557.5*300*925
Drainage flow: 5L/S
Inlet size: Φ110
Outlet size: Φ63
Equipment weight: 3.3KG
Indoor vacuum drainage performance
Xi 'an Happiness Forest Belt project (the world's largest underground forest belt project, vacuum sewage service toilet 900 toilets) - basement toilet, air conditioning room more and more scattered, vacuum unit collection
Changsha Helong Gymnasium - the first floor of the underground + the second floor of the underground catering shops are scattered, and the gravity flow emission cost is high
Qingdao Railway Station commercial development - Scattered underground catering shops, high gravity flow emission cost
Wenzhou South Railway Station - Food and beverage shops drain, gravity flow can not be discharged
Shanghai Hongqiao Railway Station - No gravity flow in the underground toilet
Baozi Village Business in Xi 'an - No gravity flow emission in underground toilets
Taizhou Fenghuang Villa State Guesthouse - Civil construction error, unable to discharge gravity flow
Changsha Zoomlion, Chongqing Naide, Yangzhou Jinwei and other environmental industry waste transfer stations - the landfill leachate has many impurities, and the gravity flow pipe is easy to block
Nanjing Yijiu Kitchen treatment equipment-wet garbage crushing + vacuum collection
Songjiang South Station large-scale residential community integrated pipe gallery phase I project - the underground toilet can not be discharged by gravity flow
Hangzhou Lingyin Temple Buddhist Garden - scattered drainage points, can not be gravity flow discharge
Shenyang Ping An Good Doctor Medical Imaging Diagnostic Center vacuum drainage - Hospital departments, unable to gravity flow discharge
Catering vacuum drainage - Hangzhou Metro Line 1, 2, 3, 4, 5, 6, 7 property development shops drainage, unable to gravity flow discharge
Chengdu Metro Line 6, Suzhou Metro Line 5 section drainage project - section sump shallow, traditional submersible pump can not be installed
Shenzhen Zhongfu Circuit Co., LTD. - Plant layout adjustment, circuit board pickling and alkali washing waste water, vacuum tank and back into the sewage treatment system
Zhengzhou Biaoju Commercial Street - Underground commercial gravity flow transformation, containing oil, sump + submersible pump maintenance inconvenience
Hangzhou International Trade Building - New top floor staff restaurant, gravity flow impact on the lower decoration, the use of vacuum oil separator unit
Wenzhou Longwan Wanda Square vacuum sewage project
Zhengzhou Erqi Square Underground commercial catering Drainage (the largest underground square in Central China)
Hebei Langfang Xianghe Daai Hospital vacuum drainage project
Chengdu Metro Line 18 Xibocheng Station vacuum drainage project - elevator, escalator pit drainage
