Outdoor Vacuum Sewage System

The outdoor vacuum drainage system of Juchuan is a kind of drainage system, which produces high-speed air flow containing sewage by means of air pressure difference and takes the sewage away from the

Outdoor Vacuum Sewage System


The outdoor vacuum drainage system of Juchuan is a kind of drainage system, which produces high-speed air flow containing sewage by means of air pressure difference and takes the sewage away from the appliance. As a new type of drainage system, compared with the traditional gravity drainage system, Juchuan vacuum drainage system can not only effectively save water and protect the water resource environment, but also has the advantages of pipe network not limited by the terrain, convenient installation, not easy to block, relatively small pipe diameter, good economic performance, etc.


MetInfo enterprise content manager system | MetInfo CMS

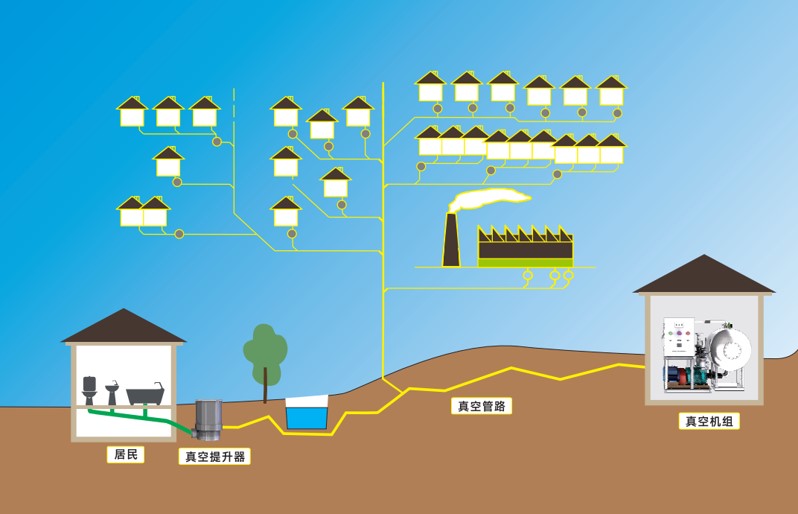

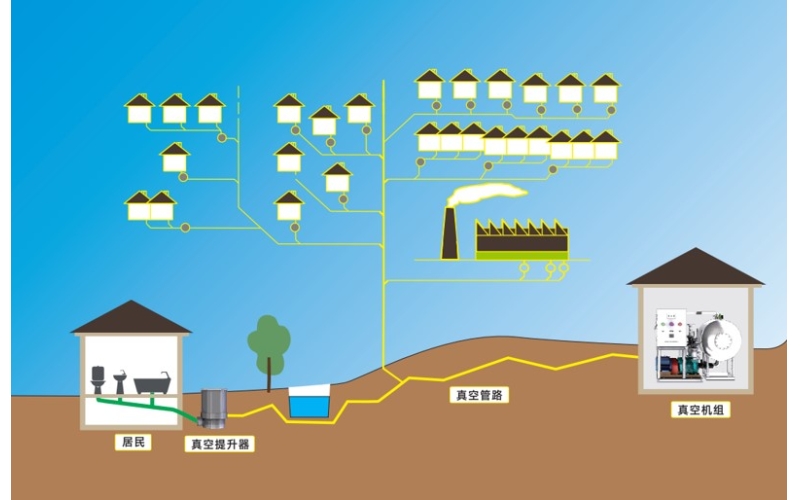

There are two types of sewage collection pipeline systems:

  • Traditional gravity sewage collection system

  • Vacuum sewer system with vacuum extraction

Compared with the traditional gravity collection system, the vacuum collection system has the following advantages:

  • Small pipe diameter, small excavation area and shallow excavation depth

  • Low construction cost

  • Easy construction and short construction period

  • Adopt vacuum negative pressure flow, up to 7m / s, strong scouring effect, pipeline is not easy to block

  • Not affected by local soil geological conditions and groundwater level

  • Little impact on local road traffic

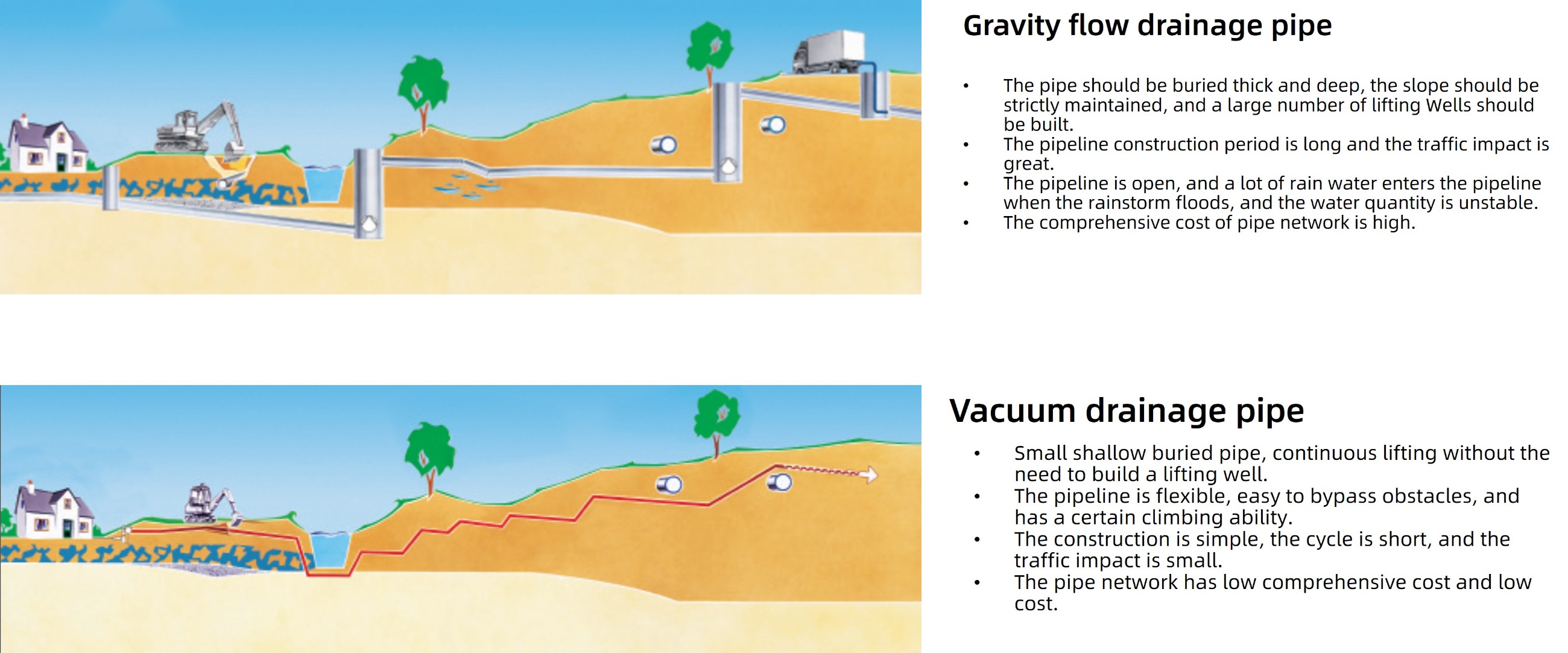

Comparison of gravity flow network and vacuum drainage network

MetInfo enterprise content manager system | MetInfo CMS

Comparison table between vacuum system and gravity drainage system


Comparison Items

Gravity flow sewage collection scheme

Vacuum sewage collection scheme

Sewage collection ideas

Fragment collection treatment

Centralized processing

Characteristics of sewage collection and transportation

Gravity flow, no power, but the pipeline needs to maintain a certain slope

Negative pressure mode, the vacuum station needs to provide power, and the pipeline can be partially lifted

Characteristics of sewage pipe system

Large pipe diameter (DN100 ~ 300), buried deep (1 ~ 3.5m)

Small pipe diameter (DN75 ~ 150), shallow depth (1.0 ~ 1.5m)

Pipeline laying flexibility

The buried depth increases rapidly when the terrain and pipeline slope are reversed; It is necessary to set up lifting pump station when crossing river gully; When laying in the same trough as the water supply pipeline, it should be set under the water supply pipeline

The pipeline can be lifted when the terrain and the pipeline reverse slope; When crossing the river gully, it can be U-shaped or directly overhead. It can be laid side by side when it is in the same trough as the water supply pipeline

Possibility of pipe blockage

In most cases, the flow rate in the sewage pipe is less than 0.6m/s, which is easy to clog

The gas and water mixture in the pipe has high flow rate, strong scouring effect, and is not easy to clog

Possibility of pipeline leakage

Commonly used pipes are reinforced concrete pipes, HDPE double-wall corrugated pipes, socket interfaces, which are easy to leak and pollute groundwater under external force or uneven settlement

The commonly used pipe is PE pipe, PVC-U pipe, hot melt connection or bonding interface, which is not easy to leak

Construction difficulty

The roadway in the village is narrow, the sewage pipe diameter is large, the burial is deep, the inspection well is many, the excavation amount of stone is involved, and the construction is difficult

The sewage pipe diameter is small, the buried depth is shallow, the valve well is less, the excavation amount of stone is less, the construction difficulty is small, and the gravity flow pipe can also be used for pipe construction, which greatly saves the construction cost

Power supply requirements

Multiple lifting pump pumping stations are required for power supply, and multiple sets of water treatment devices are required

Vacuum collection well is purely mechanical control, no power supply, only vacuum pump station power supply.

Power Consumption

Need multiple lifting pump station power supply, energy consumption is average

Low energy consumption, per ton of water collection energy consumption only 0.1 yuan

Management and Maintenance

The pipeline is easy to clog, the management and maintenance workload is large, and the technical level of management and protection personnel is low

The pipeline is not easy to be silted, and the management and maintenance workload is less, but the technical level of the management and protection personnel is required to be high

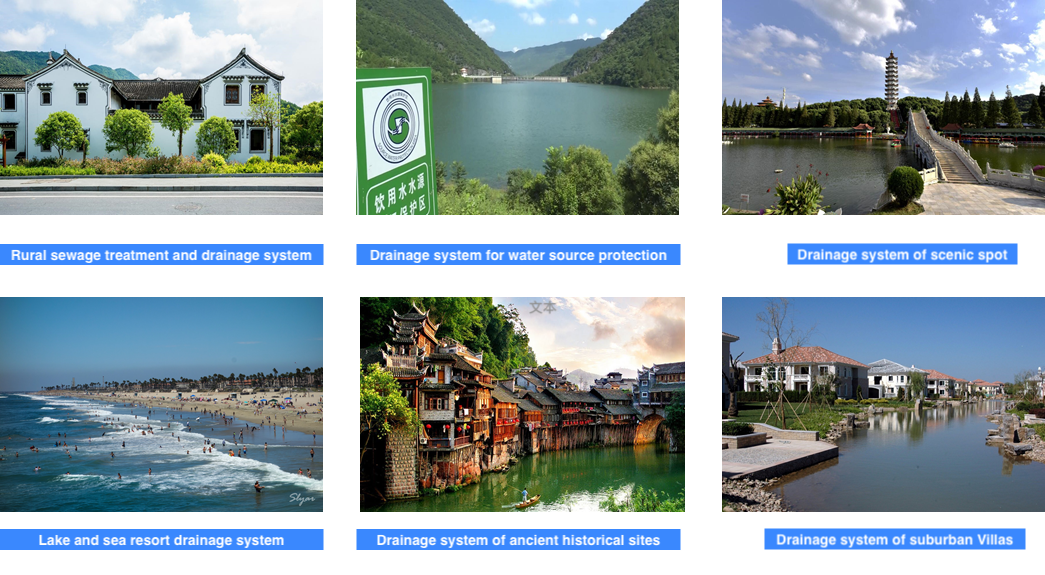

Juchuan outdoor vacuum drainage can be widely used:


Mier enterprise content manager system | Mier CMS


Rural sewage collection

The rural area has the characteristics of complex terrain, dense houses, narrow roadway, shallow rock layer and deep frozen layer, so it is difficult to use the traditional gravity flow drainage system for village drainage collection. Vacuum sewage collection technology can well adapt to the characteristics of rural topography and make up for the application defects of traditional gravity collection, with the advantages of low energy consumption and short construction period.


Mountainous areas or areas with dense water networks

In particular, mountain villas and water view villas, as well as the old city (especially the ancient city with cultural relic value) reconstruction projects that are excavated on a large scale without any conditions are unable to do their best. A large number of lift pump stations or inverted siphon roads need to be set up, which greatly increases the construction difficulty and operation and maintenance costs. The vacuum drainage system provides us with a new design concept Solve the above problems better.


Water source protection area and area with high groundwater level

Due to the advantages of good airtightness and no leakage of vacuum drainage pipeline, it can be used in water source protection area to avoid sewage leakage polluting the water source. At the same time, in the area with high groundwater level, it can also avoid the reverse infiltration of groundwater into the sewage pipeline, resulting in increased load of sewage treatment plant.


Ecologically sensitive area, sandy land, waterfront area

Under the condition of shallow groundwater and quicksand, if the traditional gravity drainage system is adopted, the buried depth of the pipe network is deep. Because of the rich groundwater, the quicksand phenomenon of excavation project is serious, and the excavation is difficult. The pipe network of vacuum drainage system is shallow and less excavated, which is suitable for sandy land and waterfront area.


Ecological drainage system

Ecological drainage advocates source classification and source control of domestic wastewater, i.e. separate collection and recycling of human excreta, decentralized and near source treatment of domestic wastewater to avoid long-distance transmission and mixing of wastewater from different sources, and high cost of water delivery pipe network. Vacuum toilet and vacuum drainage can be used to collect high concentration feces and urine separately The mixture of feces and urine is properly treated and reused in farmland


Adjacent to the lake and sea resort, the drainage system of the scenic spot

The vacuum drainage system is flexible in size and can be used in areas with large sewage flow, such as resort, scenic tourist area, etc.


Juchuan environmental protection vacuum drainage system features

At present, Juchuan Environmental Protection has produced more than 4600 sets of vacuum drainage systems, which have been used a lot. After years of experience accumulation and improvement, the products have been very mature and stable. It has the characteristics of high equipment integration, compact design, small footprint and convenient installation. Also carried out Chinese localization production, can stably control the quality and price of products. Juchuan vacuum unit in the design of the full consideration of the stability of the equipment, the use of redundant backup design, vacuum pump groups backup each other, sewage pump groups backup each other, the use of different sensors for backup, and between the pump groups alternate work, while strictly control the pump group start frequency, extend the life of the pump station. At the same time, the system adopts high reliability industrial PLC control system, reliable operation, high degree of automation.

MetInfo enterprise content manager system | MetInfo CMS

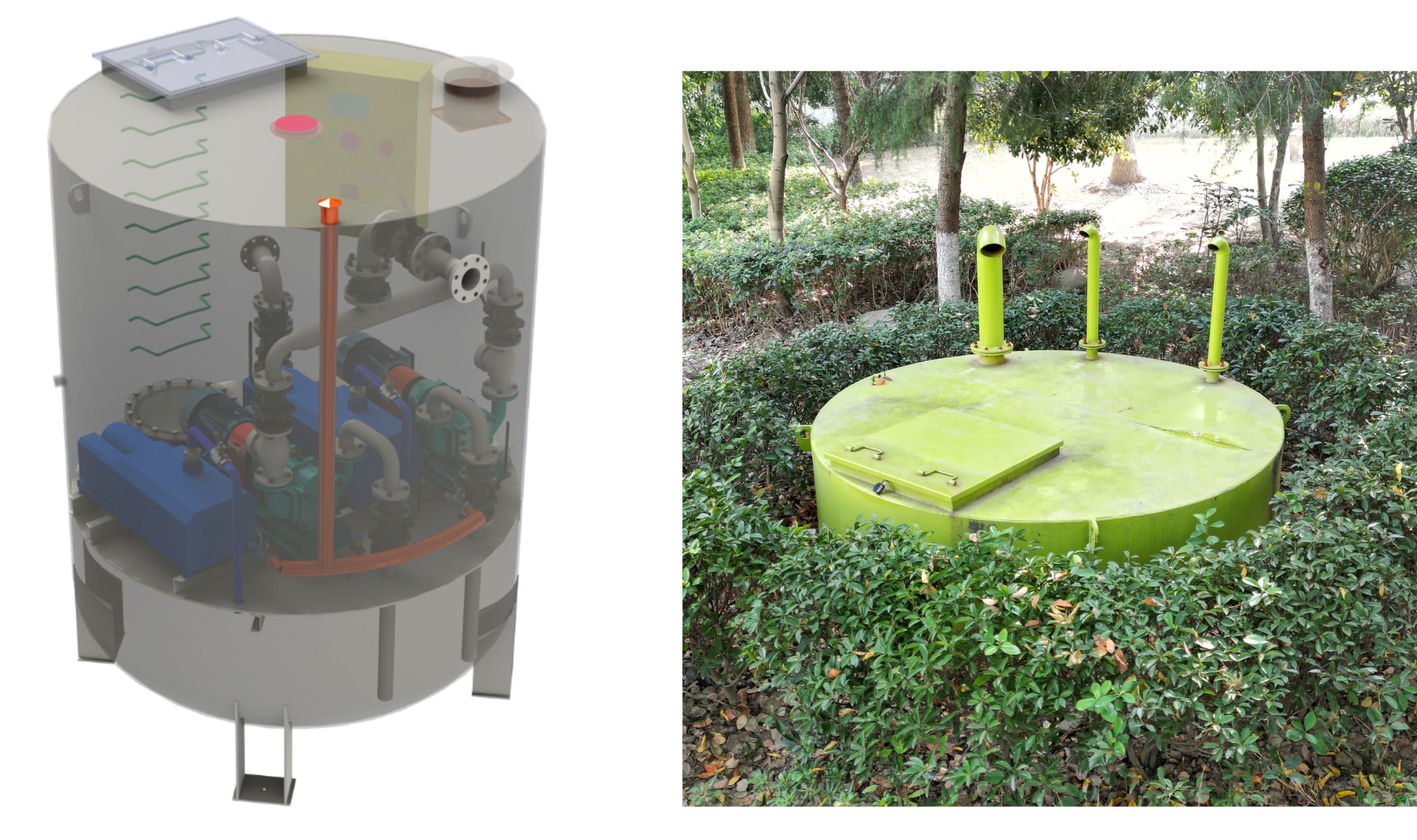

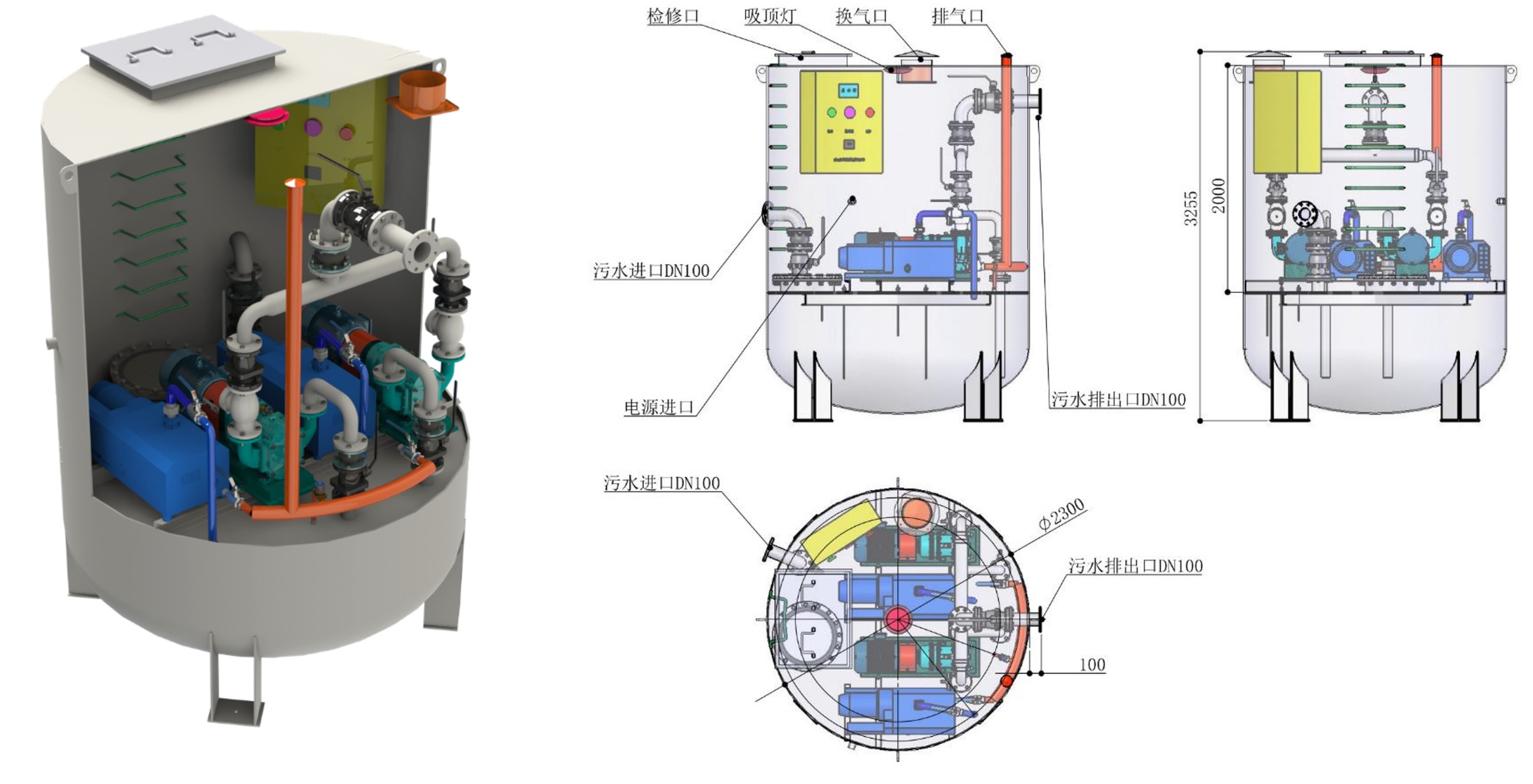

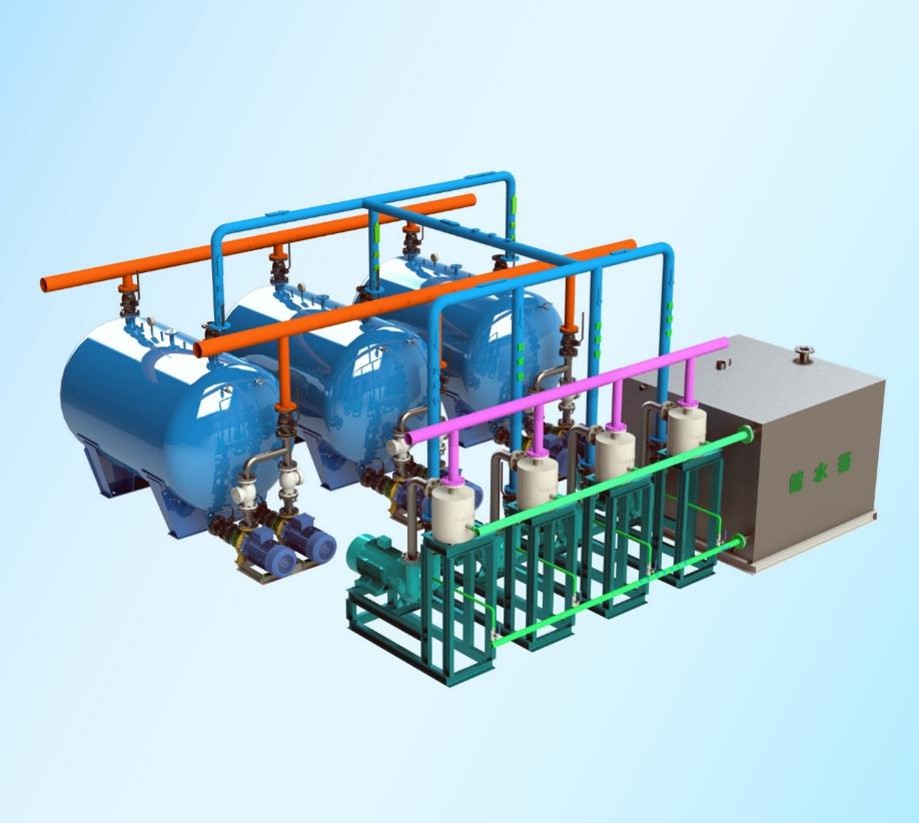

Prefabricated buried vacuum unit


The vacuum unit is the core equipment of the vacuum drainage system, mainly used to generate vacuum and sewage, and complete the management and control of each collection terminal. The equipment adopts the overall design, high integration, easy installation, small footprint, and all the parts related to the fault of the vacuum unit adopt the standby mechanism. The vacuum pump is mutually standby, the sewage pump is mutually standby, the gas control and electrode two sets of liquid level sensing devices are used to compensate for each other, and the equipment is stable and reliable.

The prefabricated buried vacuum unit has the characteristics of compact design, small footprint and convenient overall installation. It can be buried in the ground and backfilled without occupying the ground space. It is suitable for scenes that require fast construction and reduced floor space.

The low position of the vacuum tank of the buried vacuum unit can reduce the energy consumption of the vacuum system, and is also conducive to cooling and thermal insulation.

The diameter of the equipment is not more than 3 meters, and the floor area is less than 8m 2.

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

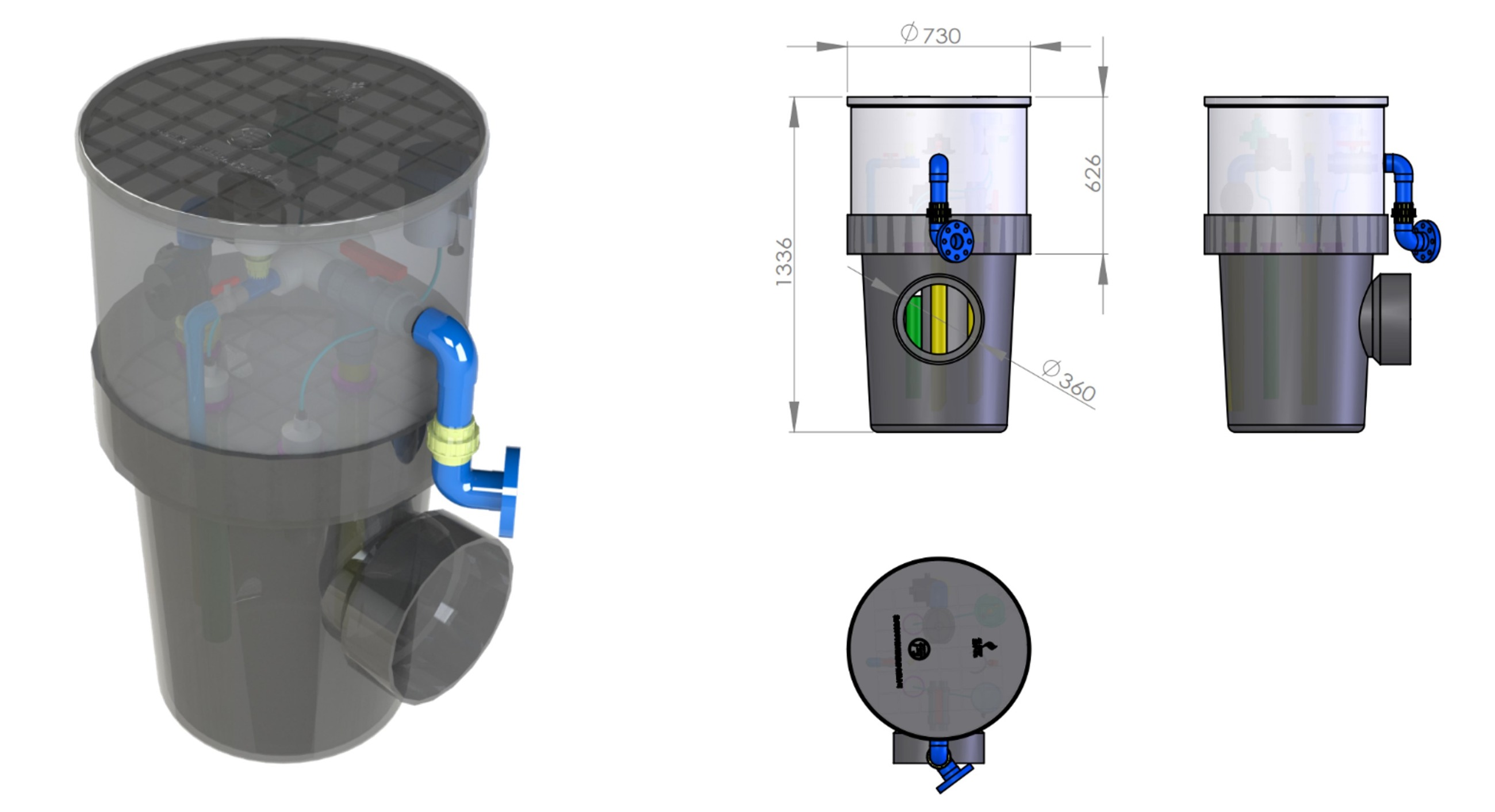

Smart outdoor vacuum collection well


Mainly used for Juchuan outdoor vacuum drainage system, the use of double diaphragm valve pure mechanical structure backup design, no power supply, adapt to the outdoor humid and harsh environment, the equipment is stable and reliable, but also save wire and cable and power pipeline laying costs, it is very convenient to put the sewage under the frozen soil. The sewage room and equipment room are separated to prevent sewage overflow, and the operation and maintenance conditions are good. The equipment is equipped with Internet of Things module, which is convenient for operation, maintenance and management.

Equipment model: VACLift-JX-TSJ

Control mode: pure mechanical control

Material of equipment: PE

Equipment volume: 55L

Equipment size: Φ730 *1336

Inlet size: Φ110/160/200

Outlet size: De63

Equipment weight: 30KG

MetInfo enterprise content manager system | MetInfo CMS






Successful Projects

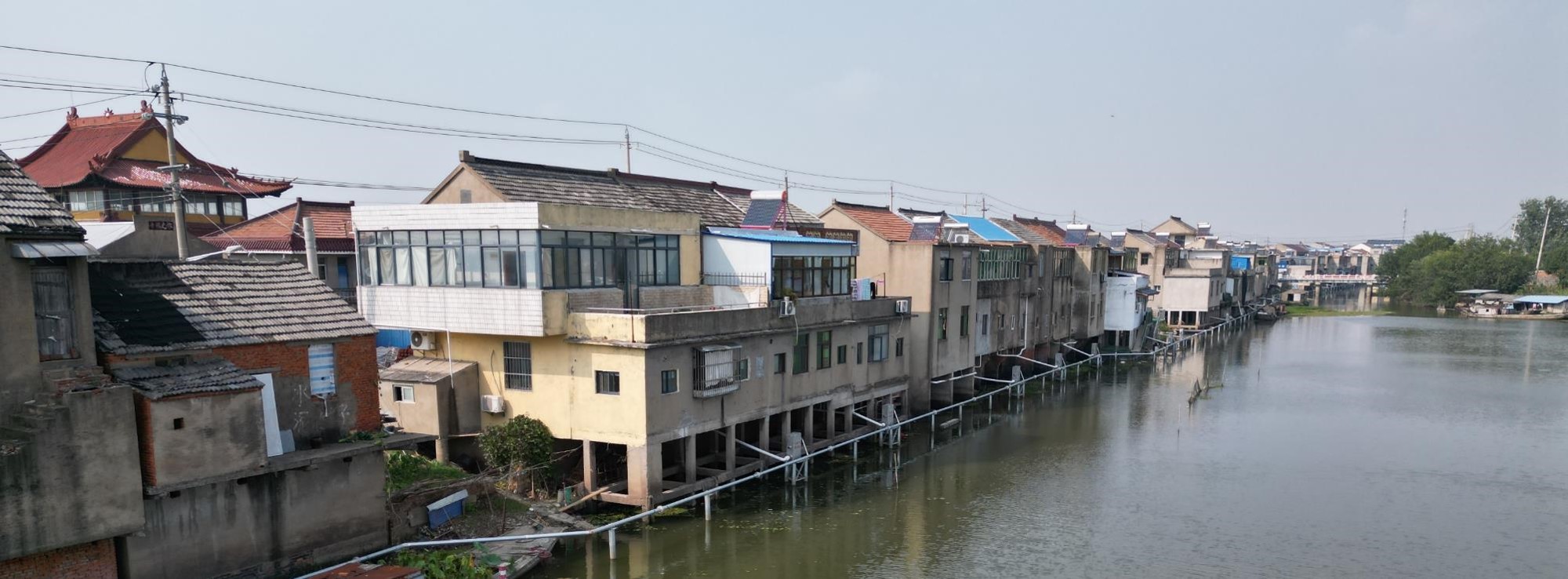

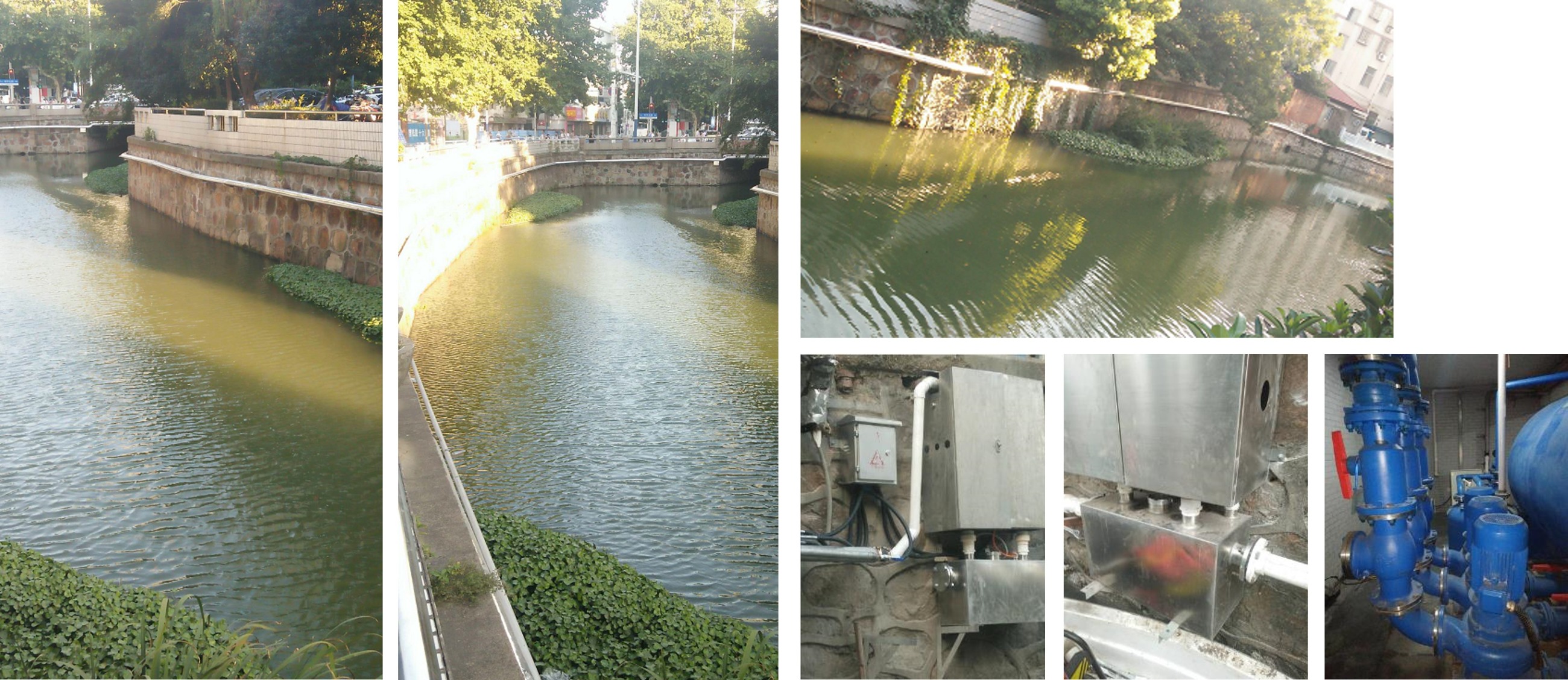

Changzhou "eleventh Five-Year" water special vacuum pollution interception demonstration project

       Changzhou is a southern water town with dense river networks. The general rainwater pipes are directly discharged into the river. However, there is a phenomenon of misconnection between rainwater and sewage pipes in the upstream living area, which causes some sewage to enter the rainwater pipe, and causes the sewage to be directly discharged into the river, constituting water pollution. On the other hand, the density of residents in the old city is large, and it is impossible to excavate and transform the pipeline. Therefore, it is very difficult to intercept the pollution. Using vacuum sewage system, service range of 1.3km, vacuum tank 5000L, sewage pump 3, vacuum pump 2. Built in 2012, it has been in use ever since.

MetInfo enterprise content manager system | MetInfo CMS

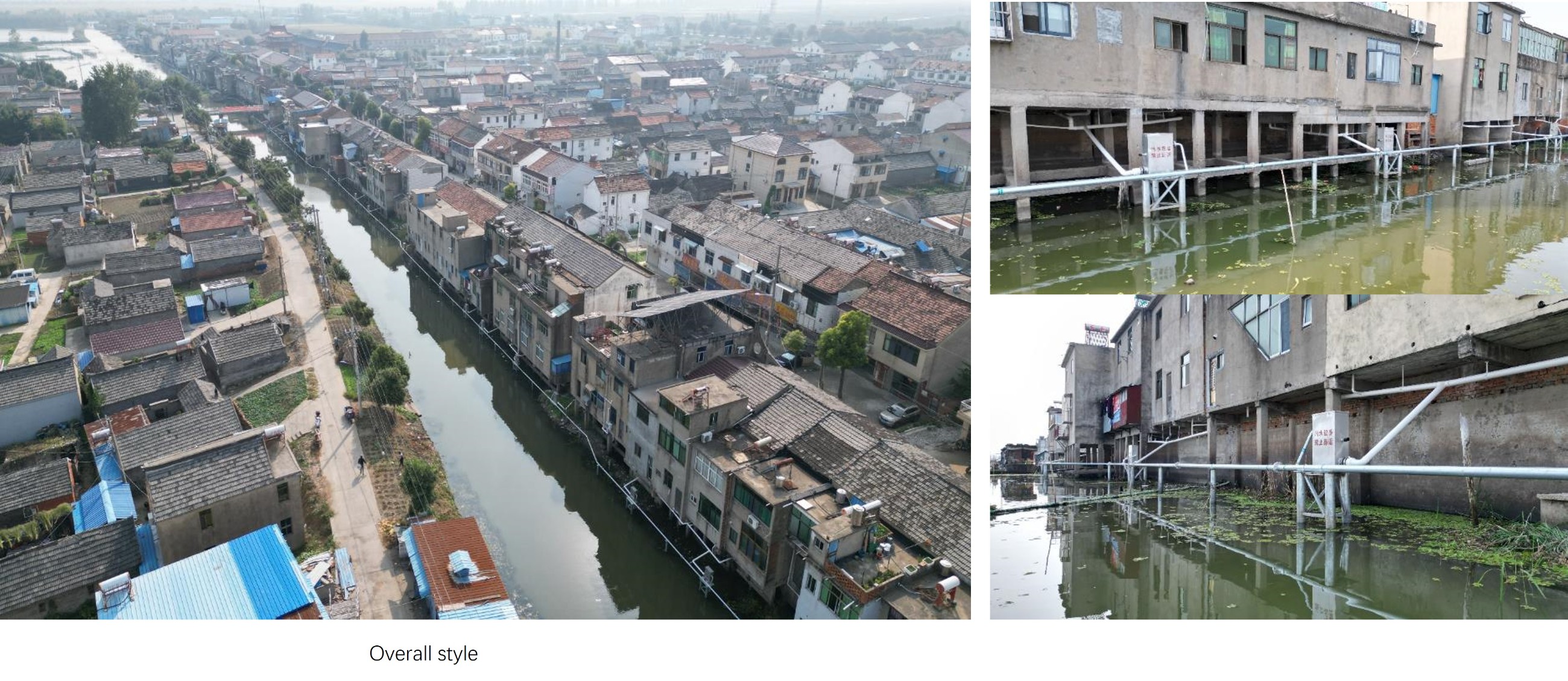

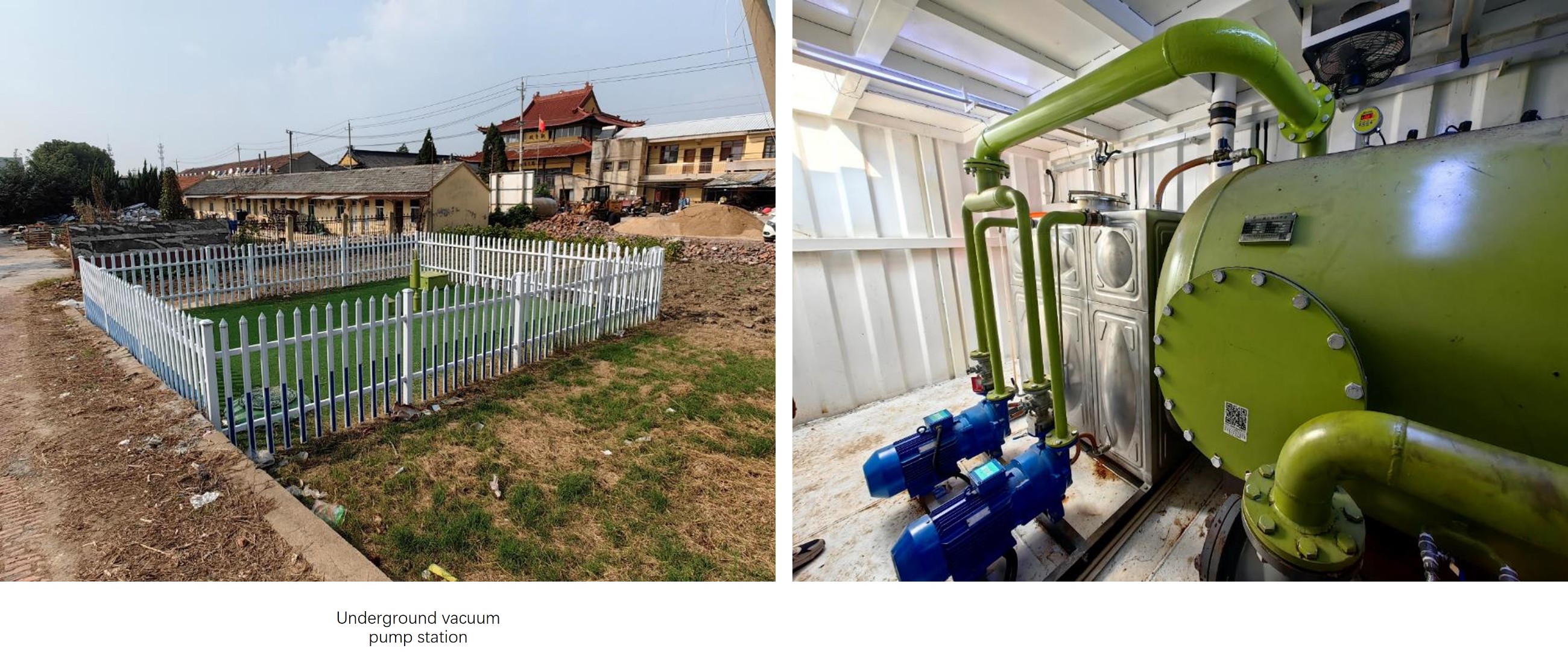

Baoying Sheyang Lake Town Hubin Road along the river part of retail drainage vacuum drainage project


        Sheyang Lake Town Hubin Road along the river part of the retail drainage vacuum drainage project mainly solve the problem of 110 households along the river, according to the site survey, the 110 households are built on the riverbank, all drainage points are toward the river, the use of traditional gravity flow drainage construction is difficult and can not completely solve the sewage problem, the vacuum drainage system is now used to collect and discharge each household sewage. This project uses a set of MDY-3000 vacuum pump station, supporting 54 wall-mounted vacuum lifters.

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

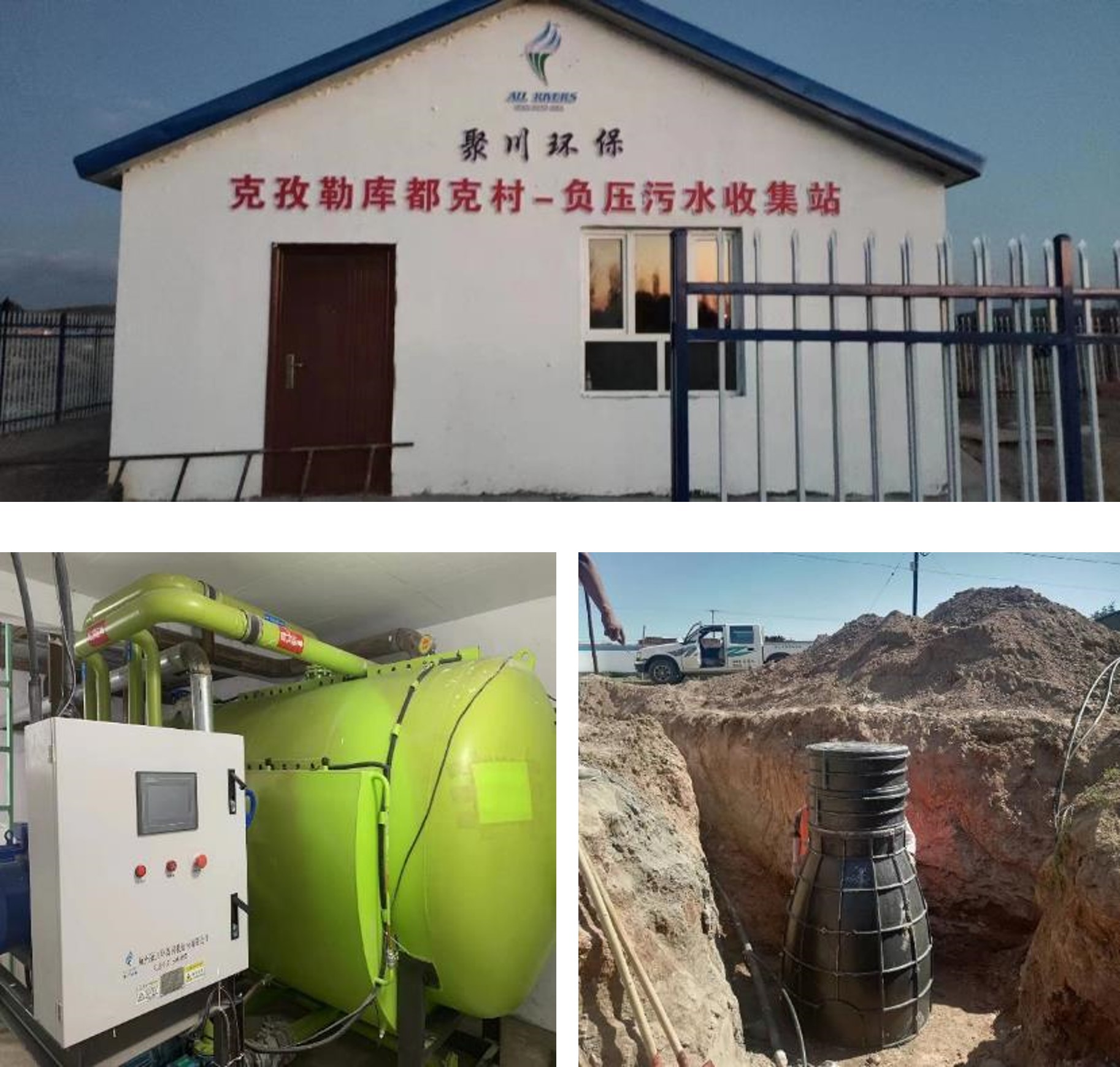

Fuyun County Kizilkuduke village negative pressure sewage treatment project


Fuyun County of Xinjiang Altai belongs to the continental cold temperate arid climate. Winter is cold and long, summer is hot, spring and autumn are short, the average temperature is 3.0℃, the extreme maximum temperature is 42.2℃, the extreme minimum temperature is -51.5℃, the average frost-free period is 137 days, the annual precipitation is 189.6mm, and the annual evaporation is 1970mm.

The traditional gravity flow is easy to freeze, large excavation, slow flow rate, easy to block and high cost. After comprehensive consideration, vacuum drainage system is adopted.

The vacuum drainage system adopts a set of VACS-6000 vacuum drainage pumping station and 100 sets of vacuum collection Wells, which are used to solve the problem of sewage collection in Kizilkuduk village. The project covers 168 residents, Kizilkuduk village primary school, village committee and village visitor center.

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

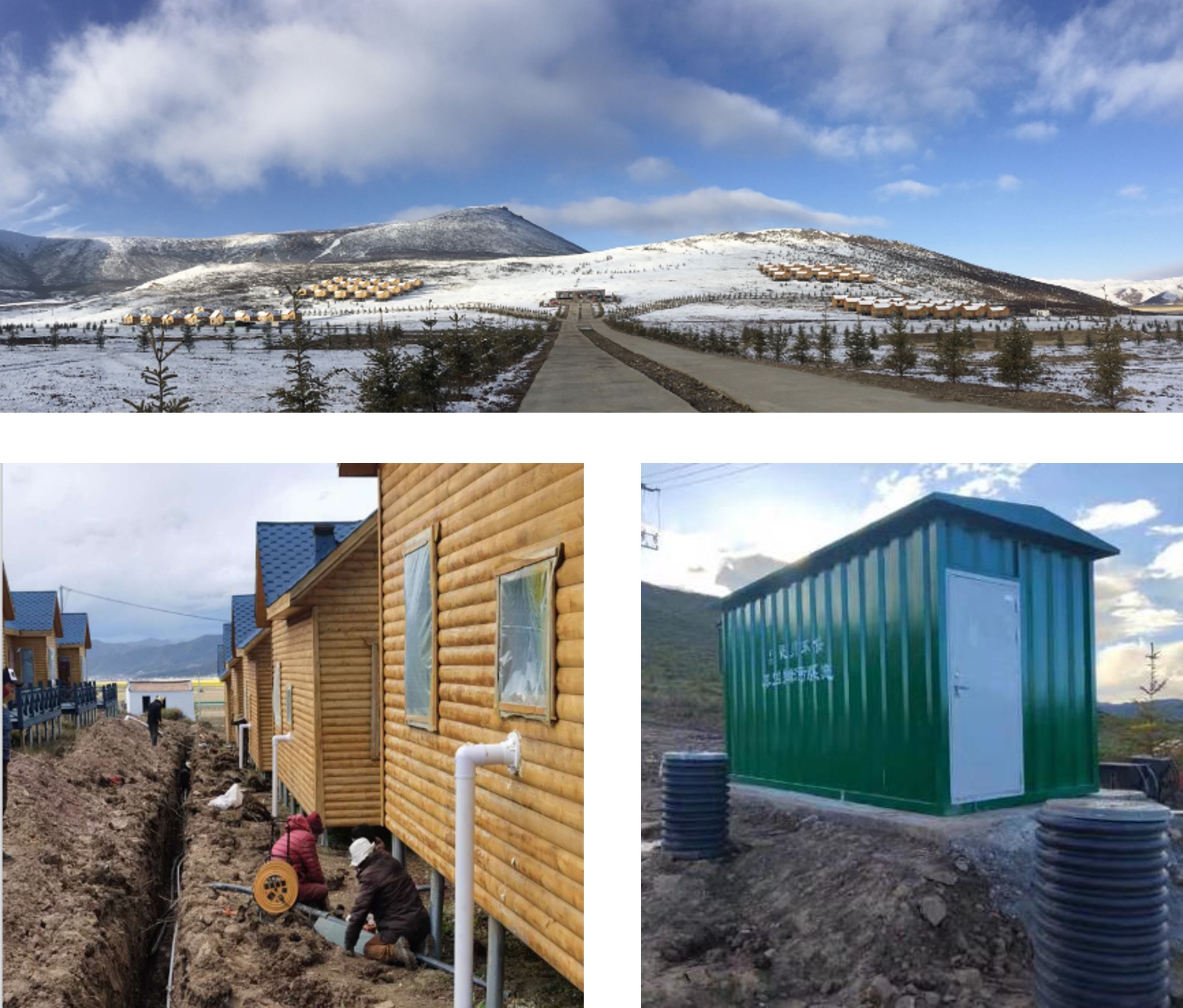

Qinghai Guoluo ecological cabin vacuum drainage project


Qinghai Guoluo ecological health cabin, with an average altitude of more than 4200 meters, belongs to the typical plateau grassland climate, with high cold and high altitude characteristics, general gravity flow drainage needs a large area of excavation, damage the surface vegetation seriously, not easy to recover, and easy to freeze. After comprehensive consideration, the vacuum drainage system is adopted. The vacuum drainage system has the characteristics of small pipe diameter, flexible laying, under excavation, anti-freezing and short construction period, which effectively solves the drainage problem in the high cold and high altitude area.

The project adopts a set of VCAS2000 vacuum unit and 40 sets of vacuum lifters in Juchuan to solve the drainage of cabins and public toilets on the project, which will be constructed and put into use in 2020.

MetInfo enterprise content manager system | MetInfo CMS


Outdoor vacuum drainage project


Project time

Project location

Project name

Project category

Product category

2012

Changzhou

Beipai River pollution interception project in Changzhou

River Interdiction

Outdoor vacuum drainage system

2017

Lishui

Qianxia Lake Tourist Resort

Water source protection area sewage treatment

Outdoor vacuum drainage system

2019

Hangzhou

Xunshan Village beautiful Village construction sewage treatment project

Treatment of agricultural pollution

Outdoor vacuum drainage

2019

Heshan

Heshan City Shaping River comprehensive regulation project

River pollution interception

Outdoor vacuum drainage

2020

Changzhi

Water and toilet improvement project of Luojianggou Village, Wangqiao Town, Xiangyuan County, Changzhi, Shanxi Province

Agricultural Pollution Control

Outdoor vacuum drainage

2020

Lingshui

Sewage collection project of Lingshui County Pilot area, Hainan province

Agricultural Pollution Control

Outdoor vacuum drainage

2020

Hangzhou

Shenkuo Square vacuum sewage project

Commercial DEVELOPMENT

Outdoor vacuum drainage

2021

Nantong

Hai 'an Boundary Tablet River project

Agricultural pollution control

Outdoor vacuum drainage

2021

Nantong

Rural sewage collection project, Liuqiao Town, Tongzhou District, Nantong City

Agricultural pollution control

Outdoor vacuum drainage

2021

Xiamen

Xiamen Science and Technology Middle School Project (Xiamen, Fujian Province)

School

Outdoor vacuum drainage

2021

Jiaxing

Jiashan Zhangdian Shigang river pollution interception project

River interdiction

Outdoor vacuum drainage

2021

Zhenjiang

Dantu Lingang Industrial Park sewage treatment and supporting works sewage full coverage phase II project

Agricultural Pollution Treatment

Outdoor vacuum drainage

2021

Haikou

Haikou Jiangdong Meilan Reserve village

Control of agricultural pollution

Outdoor vacuum drainage

2021

Nantong

Rural sewage collection project, Liuqiao Town, Tongzhou District, Nantong City

Agricultural pollution control

Outdoor vacuum drainage

2021

Luoyang

Construction of rural sewage pipe network in Hongshan Street, Xigang District

Agricultural pollution Control

Outdoor vacuum drainage

2021

Yancheng

Four-chahe River, Yancheng Dafeng vacuum sewage project

River pollution interception

Outdoor vacuum drainage

2022

Zhangjiakou

Domestic waste water project of Yuxian County, Zhangjiakou

Agricultural Pollution Control

Outdoor drainage

2022

Africa

Botswana Vacuum Drainage System Project

Agricultural Pollution Control

Outdoor vacuum drainage

2022

Lingshui

Lingshui County pilot area of Hainan Province sewage collection project

Agricultural Pollution Control

Outdoor vacuum drainage


Project time

Project location

Project name

Project category

Product category

2022

Yangzhou

Baoying Jing An Trunk Canal, Jing Zhang Trunk Canal along the river network and road network renovation project

Agricultural Pollution Control

Outdoor vacuum drainage

2022

Haikou

Meilan Jiangdong agricultural pollution control (Phase I) B standard project

Agricultural Pollution Control

Outdoor vacuum drainage

2022

Altay

Vacuum sewage discharge project in Kizilkuduke village, Fuyun County, Xinjiang

Agricultural pollution control

Outdoor vacuum drainage

2022

Yancheng

Yancheng Dafeng Xiaohai Project

Agricultural pollution control

Outdoor vacuum drainage

2022

Zhenjiang

Dantu Lingang Industrial Park Sewage treatment and supporting projects Full sewage coverage Phase II project (vacuum equipment procurement, installation and operation and maintenance)

Agricultural pollution control

Outdoor vacuum drainage

2022

Start-up

Domestic sewage area treatment project design project in 2022, Huiping Town, Qidong City

Agricultural Pollution Control

Outdoor vacuum drainage

2022

Kiamusi

Jiamusi suburb Minxing village vacuum sewage project

Agricultural pollution control

Outdoor vacuum drainage

2022

Start-up

A district of Yinyang, Qidong City, will treat rural domestic sewage in 2022

Agricultural pollution control

Outdoor vacuum drainage

2022

Start-up

2022 Rural Decentralized Sewage Treatment Project (second phase), Huilong Town, Qidong City

Agricultural pollution treatment

Outdoor vacuum drainage

2022

Start-up

2022 Rural Domestic sewage treatment Project (Section 1) in Wangbao Town, Qidong City

Agricultural pollution treatment

Outdoor vacuum drainage

2022

Luoyang

Outdoor vacuum drainage project of Caidong Village, Xin 'an County, Luoyang City

Agricultural pollution control

Outdoor vacuum drainage

2022

Qidong

Negative pressure collection project in Lusi Town, Qidong

Agricultural pollution control

Outdoor vacuum drainage

2022

Xinjiang

103rd Regiment of the Sixth Division 2022 Rural Revitalization Living Environment Improvement Construction project -10 Company

Agricultural Pollution Control

Outdoor vacuum drainage

2022

Yangzhou

Baoying County Township Sewage network Construction project (Xi 'an Feng)EPC project general contract

Agricultural pollution Control

Outdoor vacuum drainage

2022

Qidong

Qidong city 2022 rural domestic sewage treatment project

Agricultural pollution treatment

Outdoor vacuum drainage

2022

Yangzhou

Fuxing River Sewage Outlet renovation Project of Daqiao Town People's Government of Jiangdu District, Fuxing River, Daqiao Town, Jiangdu District, Yangzhou

Agricultural Pollution Control

Outdoor vacuum drainage

2023

Africa

Outdoor vacuum drainage project in Botswana

Outdoor Vacuum Drainage

Outdoor vacuum drainage

2023

Yangzhou

Shentong Village (south side) project, Jidong Village, Xiaoji Town

Outdoor vacuum drainage

Outdoor vacuum drainage

2023

Yangzhou

Shentong Village (north side) Xiang, Jidong Village, Xiaoji Town

Outdoor vacuum drainage

Outdoor vacuum drainage

2023

Zhangjiakou

Bailiubao rural revitalization project in Yuxian county, Zhangjiakou

Outdoor vacuum drainage

Outdoor vacuum drainage

Project time

Project location

Project name

Project category

Product category

2023

Yangzhou

Baoying County Sheyang Lake vacuum drainage project

River pollution interception

Outdoor vacuum drainage

2023

Loyang

Rural sewage treatment project in Xin 'an County, Luoyang

Agricultural pollution control

Outdoor vacuum drainage

2023

Jiaxing

Xiaoli Port river pollution interception project, Jiashan County

River Channel Pollution Interception

Outdoor vacuum drainage

2023

Qidong

The 2022 rural domestic sewage treatment project of Qidong City, Lufu Township, Lusigang Town

Agricultural pollution treatment

Outdoor vacuum drainage

2023

Altay

Pilot project to improve the integrated treatment capacity of rural manure in 2023 in Haizikou Village, Tiemaike Township, Fuyun County

Agricultural Pollution Control

Outdoor vacuum drainage

2023

Xinjiang

The 103rd Regiment of the Sixth Division 2022 Rural Revitalization Living Environment Improvement Construction project

Agricultural Pollution Control

Outdoor vacuum drainage

2023

Jiaxing

Jiashan County Weitang Street Rihui Bridge port water quality improvement service project

River pollution interception

Outdoor vacuum drainage

2023

Jingzhou

Rural domestic sewage treatment and garbage collection project of Honghu West Bank, Jingzhou City, Hubei province

Agricultural Pollution Treatment

Outdoor vacuum drainage

2023

Zhangjiakou

Bailiubao rural revitalization project in Yuxian county, Zhangjiakou

Agricultural pollution control

Outdoor vacuum drainage

2023

Qidong

Qidong city 2022 rural domestic sewage treatment project

Agricultural pollution treatment

Outdoor vacuum drainage

2023

Taicang

Drainage pipe network inspection leak repair project in Taicang city

Control of agricultural pollution

Outdoor vacuum drainage

2023

Jiaxing

Xiabaoqiao Port river pollution interception project, Xiuzhou District, Jiaxing City

River Channel Pollution interception

Outdoor vacuum drainage

2023

Jiangyin

Vacuum negative pressure project for domestic sewage collection in Fanzhuang, Changjing Town, Jiangyin, Jiangsu Province

Agricultural pollution Control

Outdoor vacuum drainage

2023

Yangzhou

Jiangdu District, Yangzhou 2023 rural domestic sewage treatment facilities construction project

Agricultural Pollution Treatment

Outdoor vacuum drainage

2023

Haikou

Haikou Meilan district Nongsu-Yanfeng Town-Beigang Village Committee

Agricultural Pollution Control

Outdoor vacuum drainage

2023

Nantong

Outdoor project, Wuji Town, Tongzhou District, Nantong City

Agricultural pollution control

Outdoor vacuum drainage

2023

Nantong

Outdoor project, Haimen Town, Tongzhou District, Nantong City

Agricultural pollution control

Outdoor vacuum drainage

2023

Nantong

Outdoor project, Dongshe Town, Tongzhou District, Nantong City

Agricultural pollution control

Outdoor vacuum drainage

2023

Yangzhou

Baoying County Canal bridge concentration area pollution interception project

Agricultural Pollution Control

Outdoor vacuum drainage

2023

Jiaxing

Jiashan Nong Mall river pollution interception project

River Channel Pollution interception

Outdoor vacuum drainage








Hangzhou all rivers Environmental Production Technology Co.,Ltd,(stock code:870271)

       Founded in 2006, the company is committed to innovative drainage equipment and system R & D and market promotion. Main products include: outdoor vacuum drainage system, indoor vacuum drainage systemmetro station gravity flow, vacuum combined vacuum collection system, high-efficiency water-saving micro water circulation environment-friendly toilet system, large building vacuum collection system, cam type closed pump station system and low-level air pressure drainage system, negative pressure waste collection system and urban sewerage treatment equipment.

     Enterprise mission:utilize technology, improve environment, benefit people.

     Enterprise goal:focus on sustainable environmental technology, innovation as the soul is the purpose, win-win cooperation with customers, provide customers with more reasonable and practical all technical solutions and contribute to environmental production.

    Service field:focus on vacuum sewage, sewage treatment, environmental   protection toilet, vacuum waste collection.

    Main business: innovative drainage equipment and system R & D and market promotion.


Mier enterprise content manager system | Mier CMS


Business application fields

Vacuum drainage system                                                                                Environmental production toilet system

Subway intelligent central vacuum drainage system                                          Micro water circulation environmental protection public toilet

Vacuum drainage system of metro section                                                         Vacuum environmental protection public toilet

Indoor vacuum drainage system                                                                         Vehicle vacuum toilet

Outdoor decentralized sewage collection system                                               Container camp vacuum toilet

Commercial catering vacuum drainage system                                                  RV vacuum toilet

Hotel vacuum sewage system                                                                            Hotel vacuum toilet

Hospital vacuum drainage system                                                                      Marine vacuum toilet

Supermarket vacuum drainage system

Marine vacuum drainage system                                                                       Vacuum solid collection

Vacuum drainage system of underground pipe gallery                                      Vacuum collection system of organic waste in community

Vacuum drainage river sewage interception system                                          Vacuum organic garbage collection system for commercial catering

Reconstruction of vacuum drainage system for building drainage                     Hotel clothing vacuum collection system

Landfill leachate vacuum drainage system                                                         Vacuum transfer system of laboratory sample

Vacuum drainage system of environmental protection public toilet                    Vacuum pneumatic logistics transmission system


Low level air pressure drainage system                                                         Closed pump station of cam pump
Air pressure drainage of metro section                                                                Closed lifting pump station drainage of metro toilet

Metro switch machine can discharge water by air pressure                                Underground space toilet closed lifting pump station drainage

Air pressure drainage of metro elevator foundation pit

Air pressure drainage system for water leakage in low-lying area of subway


Hangzhou all rivers Environmental Production Technology Co.,Ltd,(stock code:870271)

       Founded in 2006, the company is committed to innovative drainage equipment and system R & D and market promotion. Main products include: outdoor vacuum drainage system, indoor vacuum drainage systemmetro station gravity flow, vacuum combined vacuum collection system, high-efficiency water-saving micro water circulation environment-friendly toilet system, large building vacuum collection system, cam type closed pump station system and low-level air pressure drainage system, negative pressure waste collection system and urban sewerage treatment equipment.

     Enterprise mission:utilize technology, improve environment, benefit people.

     Enterprise goal:focus on sustainable environmental technology, innovation as the soul is the purpose, win-win cooperation with customers, provide customers with more reasonable and practical all technical solutions and contribute to environmental production.

    Service field:focus on vacuum sewage, sewage treatment, environmental   protection toilet, vacuum waste collection.

    Main business: innovative drainage equipment and system R & D and market promotion.


Mier enterprise content manager system | Mier CMS


Business application fields

Vacuum drainage system                                                                                Environmental production toilet system

Subway intelligent central vacuum drainage system                                          Micro water circulation environmental protection public toilet

Vacuum drainage system of metro section                                                         Vacuum environmental protection public toilet

Indoor vacuum drainage system                                                                         Vehicle vacuum toilet

Outdoor decentralized sewage collection system                                               Container camp vacuum toilet

Commercial catering vacuum drainage system                                                  RV vacuum toilet

Hotel vacuum sewage system                                                                            Hotel vacuum toilet

Hospital vacuum drainage system                                                                      Marine vacuum toilet

Supermarket vacuum drainage system

Marine vacuum drainage system                                                                       Vacuum solid collection

Vacuum drainage system of underground pipe gallery                                      Vacuum collection system of organic waste in community

Vacuum drainage river sewage interception system                                          Vacuum organic garbage collection system for commercial catering

Reconstruction of vacuum drainage system for building drainage                     Hotel clothing vacuum collection system

Landfill leachate vacuum drainage system                                                         Vacuum transfer system of laboratory sample

Vacuum drainage system of environmental protection public toilet                    Vacuum pneumatic logistics transmission system


Low level air pressure drainage system                                                         Closed pump station of cam pump
Air pressure drainage of metro section                                                                Closed lifting pump station drainage of metro toilet

Metro switch machine can discharge water by air pressure                                Underground space toilet closed lifting pump station drainage

Air pressure drainage of metro elevator foundation pit

Air pressure drainage system for water leakage in low-lying area of subway


Hangzhou all rivers Environmental Production Technology Co.,Ltd,(stock code:870271)

       Founded in 2006, the company is committed to innovative drainage equipment and system R & D and market promotion. Main products include: outdoor vacuum drainage system, indoor vacuum drainage systemmetro station gravity flow, vacuum combined vacuum collection system, high-efficiency water-saving micro water circulation environment-friendly toilet system, large building vacuum collection system, cam type closed pump station system and low-level air pressure drainage system, negative pressure waste collection system and urban sewerage treatment equipment.

     Enterprise mission:utilize technology, improve environment, benefit people.

     Enterprise goal:focus on sustainable environmental technology, innovation as the soul is the purpose, win-win cooperation with customers, provide customers with more reasonable and practical all technical solutions and contribute to environmental production.

    Service field:focus on vacuum sewage, sewage treatment, environmental   protection toilet, vacuum waste collection.

    Main business: innovative drainage equipment and system R & D and market promotion.


Mier enterprise content manager system | Mier CMS


Business application fields

Vacuum drainage system                                                                                Environmental production toilet system

Subway intelligent central vacuum drainage system                                          Micro water circulation environmental protection public toilet

Vacuum drainage system of metro section                                                         Vacuum environmental protection public toilet

Indoor vacuum drainage system                                                                         Vehicle vacuum toilet

Outdoor decentralized sewage collection system                                               Container camp vacuum toilet

Commercial catering vacuum drainage system                                                  RV vacuum toilet

Hotel vacuum sewage system                                                                            Hotel vacuum toilet

Hospital vacuum drainage system                                                                      Marine vacuum toilet

Supermarket vacuum drainage system

Marine vacuum drainage system                                                                       Vacuum solid collection

Vacuum drainage system of underground pipe gallery                                      Vacuum collection system of organic waste in community

Vacuum drainage river sewage interception system                                          Vacuum organic garbage collection system for commercial catering

Reconstruction of vacuum drainage system for building drainage                     Hotel clothing vacuum collection system

Landfill leachate vacuum drainage system                                                         Vacuum transfer system of laboratory sample

Vacuum drainage system of environmental protection public toilet                    Vacuum pneumatic logistics transmission system


Low level air pressure drainage system                                                         Closed pump station of cam pump
Air pressure drainage of metro section                                                                Closed lifting pump station drainage of metro toilet

Metro switch machine can discharge water by air pressure                                Underground space toilet closed lifting pump station drainage

Air pressure drainage of metro elevator foundation pit

Air pressure drainage system for water leakage in low-lying area of subway


关联内容
